DUPLEX UNIT (OPTION)
J001/J003 6-50 SM
6.11.3 DUPLEX UNIT COVER OPEN SWITCH

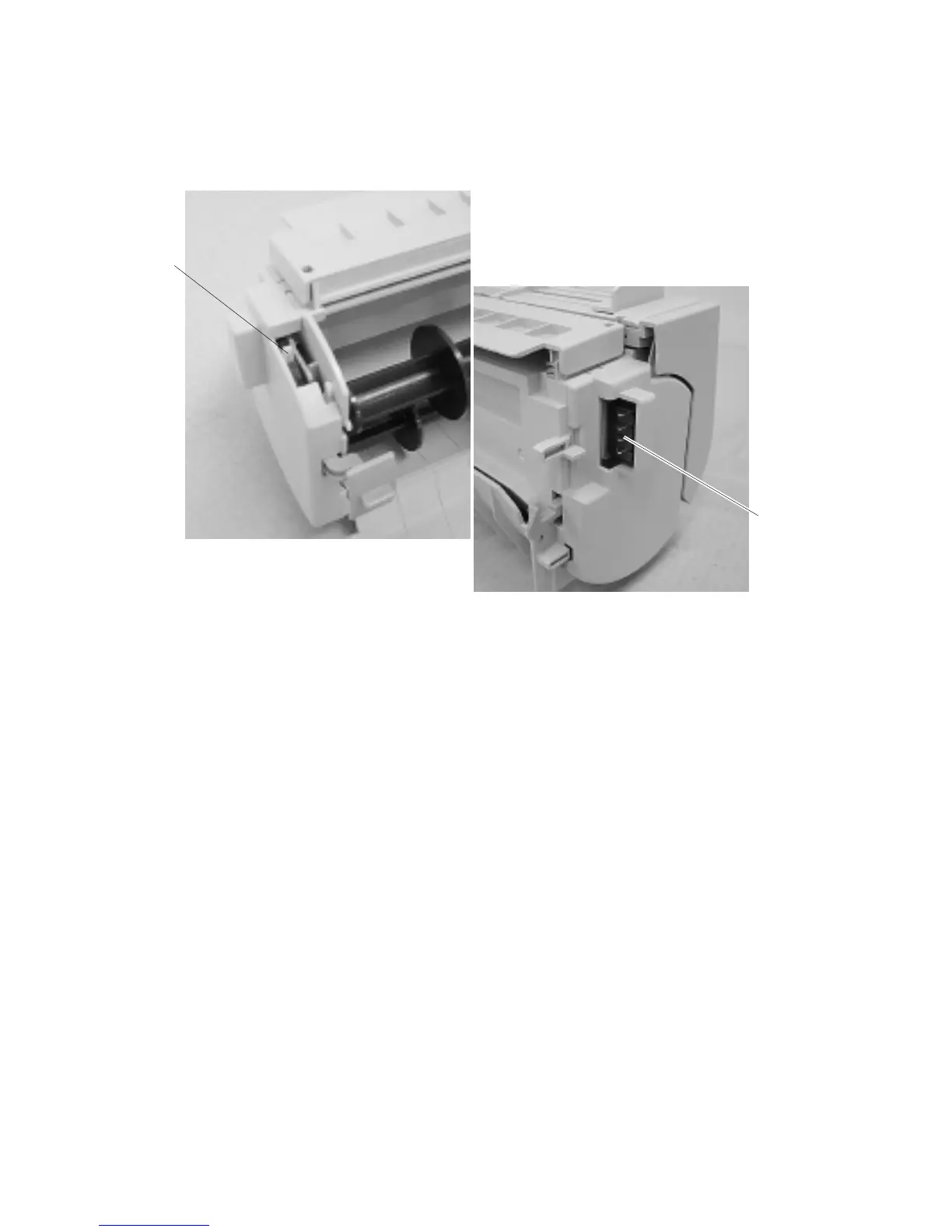

The Duplex Unit cover open switch [A] is a micro switch.
The cover open switch detects if the cover is open or closed.
When the cover is closed, the switch is closed. The circuit is closed at the 4
terminal pins [B] of the DRV board that connect to the printer. The printer controls
the Duplex Unit through the DRV board.
The switch breaks the connection between the printer and Duplex Unit when the
cover is open.
