Ricoh J001 - Ink Collection Tank

Ink Supply System
SM 6-23 J007/J010/J011
J007/J010/
J011
Cleaning Table
Idle Time Required Cleaning Time
J007/J010 J011
> 10 hours, < 3 days 20 s 24 s
> 3 Days, < 7 Days 20 to 80 s 24 to 160 s
> 7 Days, < 1 Month 80 s 160 s
> 1 Month, < 3
Months
180 s 360 s
> 3 Months 180 s 360 s

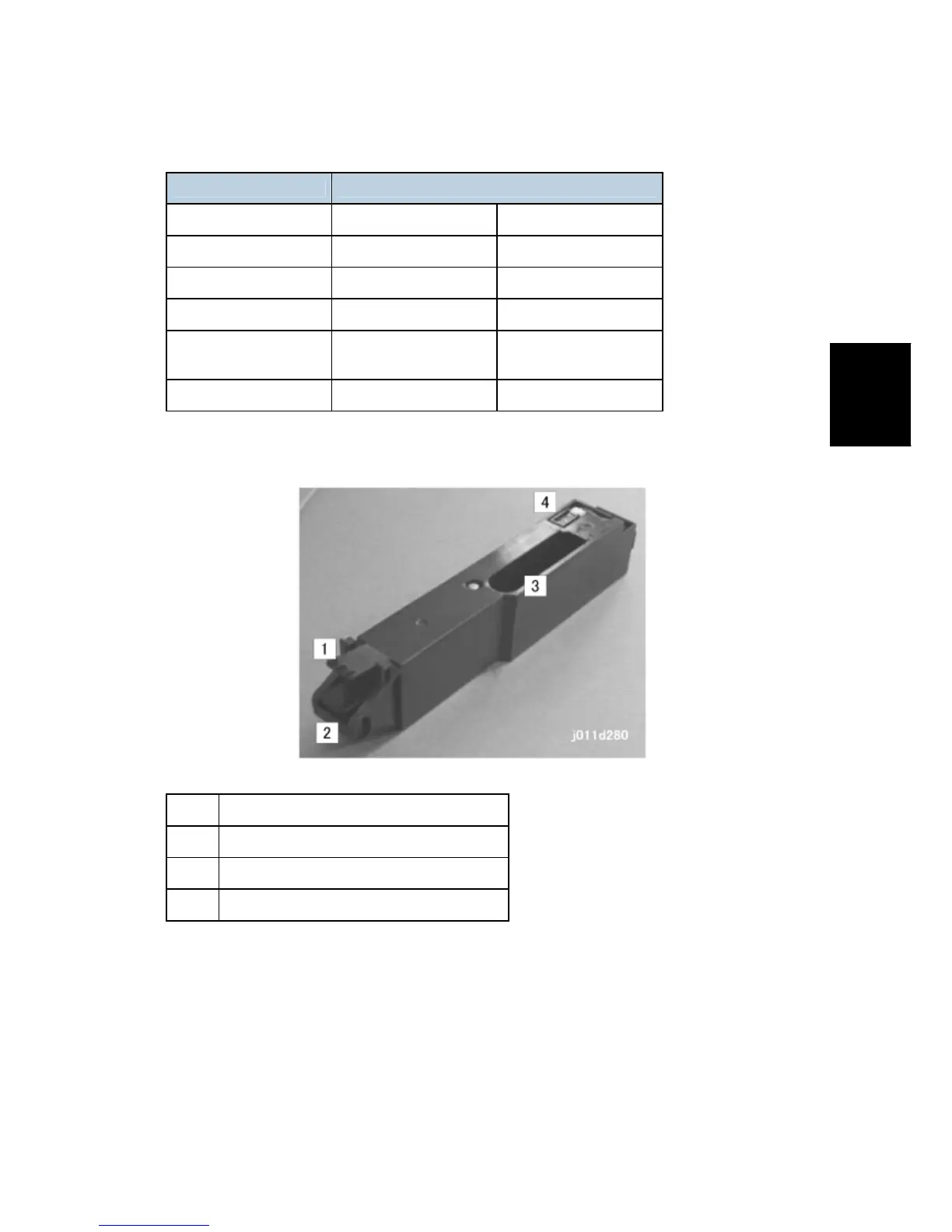

6.4.8 INK COLLECTION TANK
1 Ink Collection Tank Release
2 Tank Handle
3 Tank Entrance Slot
4 Ink Collection Tank Sensor
The ink collection unit holds the used ink sent to it from the maintenance unit above.
