Installation Procedure
SM 1-17 J007/J010/J011
J007/J010/
J011

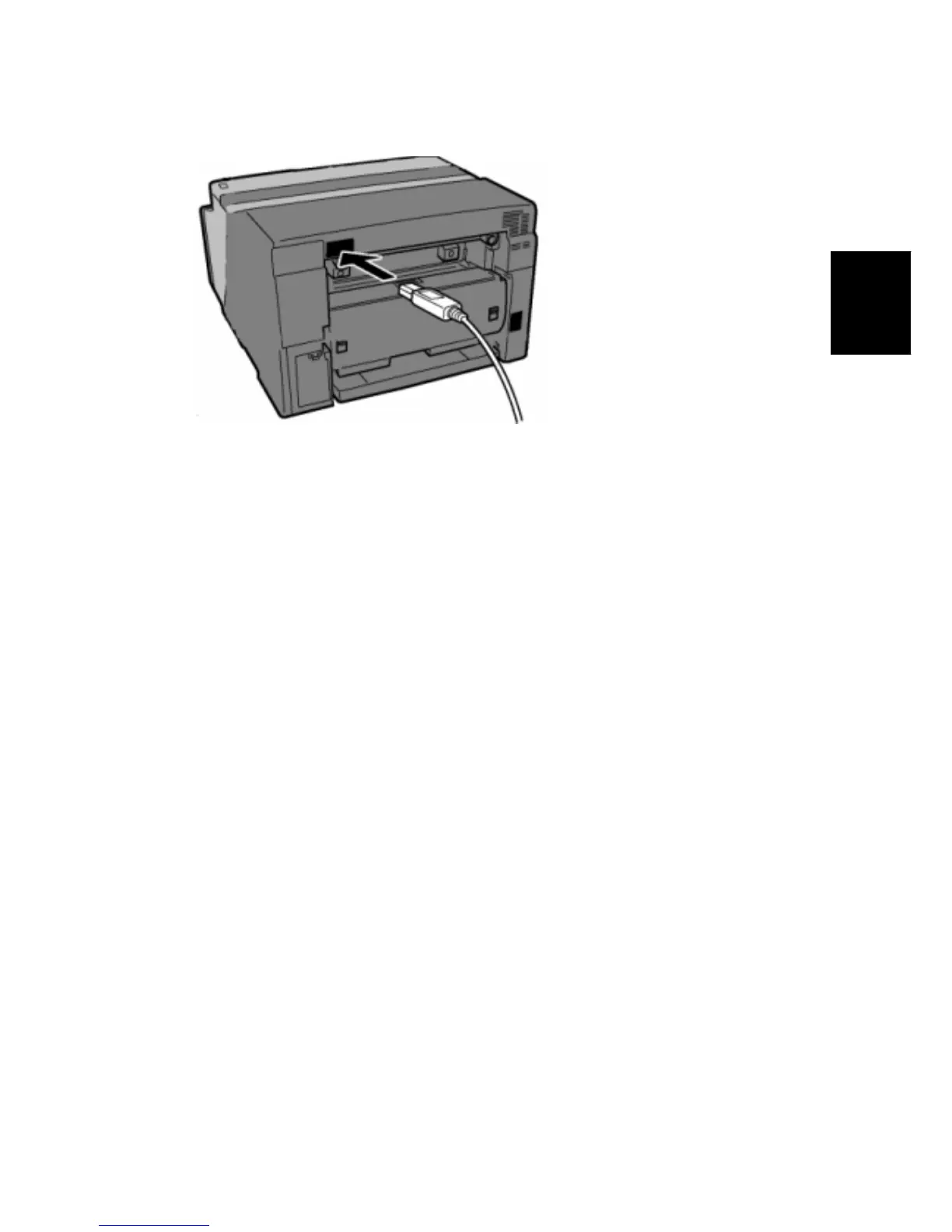

4. Connect the Type B (hexagonal) connector of the USB cable [A] to the
connection point on the back of the printer.
5. Connect the Type A (rectangular) connector of the USB cable into the PC.
1.3.8 CLEAN THE PRINT HEADS AND DO A TEST PRINT
To clean all the print heads
1. Push [Menu], select "Maintenance", and push [#Enter].
2. Select "Head-cleaning" and push [#Enter].
3. Push [Online] to return to standby mode.
To print a Nozzle Check Pattern
1. Push [Menu], select "Maintenance", and push [#Enter].
2. Select "Nozzle Check" and push[#Enter].
3. Push [Online] to return to standby mode.
4. Check the four ladder patterns of the Nozzle Check Pattern.
