INSTALLATION PROCEDURE
J001/J003 1-14 SM
1.2.6 LOAD PAPER
Loading the Standard Paper Cassette

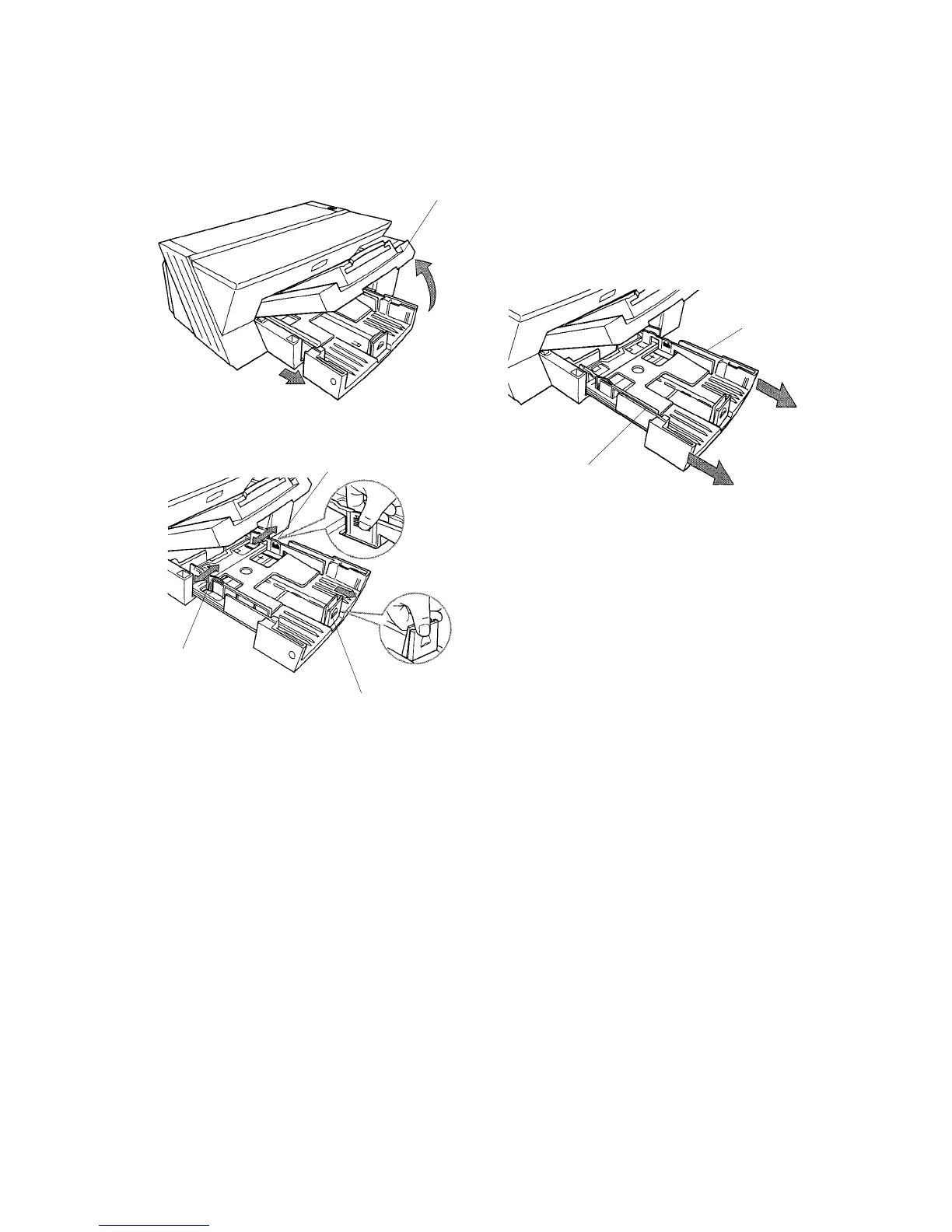

1. Raise the output tray [A]. The paper cassette ejects slightly from the printer
after the output tray is raised.
Important: Always raise the output tray before you pull the paper cassette
partially out of the printer.
2. Hold the paper cassette [B] on both sides. Then slowly pull it out until it stops.
Important: Do not attempt to remove the paper cassette from the printer. You
do not have to fully remove the paper tray from the printer to load it with paper.
3. Pinch the side fence tabs [C], [D] on the left and right side of the paper cassette.
Then move them to correct position for the paper size you want to set (A4 or
LTR).
4. Pinch the bottom fence tabs [E]. Then slide the bottom fence out.
[A]
[B]
[C]
[D]
[E]
[B]
To Next Page
