3.5.6 FEED ROLLER CLEANING
1. Open the top cover.
2. Remove the paper cassette.
3. Remove the flushing unit.

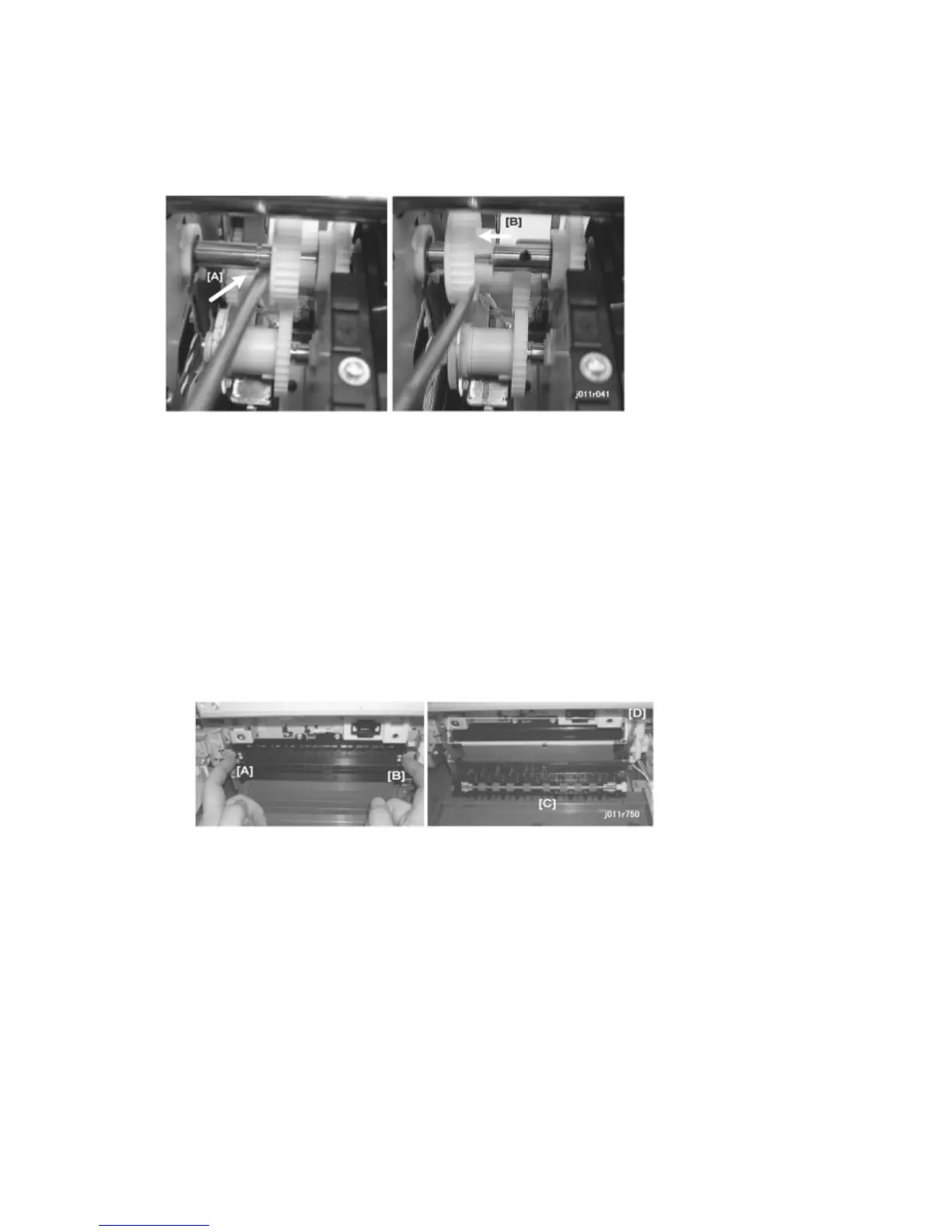

4. Use the tip of a screwdriver to release the Teflon lock tab [A] of the transport
roller.
5. Slide the transport roller gear [B] to the left.
This unlocks the roller and allows it to rotate freely.
6. Rotate the roller and clean it with a dry cloth.
3.5.7 TRANSPORT BELT CLEANING
1. Remove the duplex unit and rear guide from the back of the printer.
2. Release the left and right locks [A] and [B] (marked "PUSH") of the reverse
guide plate.
3. Open and lower the reverse guide plate [C] to expose the surface of the
transport roller [D].
