REPLACEMENT AND ADJUSTMENT

SM 5 J006

J006

3.3 MAINTENANCE UNIT, WASTE INK UNIT

J001/J003 Manual Reference

The section numbers referenced in Step 1 are in the

J001/J003 Service Manual.

Comment

Procedure change due to slight modifications in the structure

of the printer.

1. Remove:

• Output tray (3.2.2)

• Paper feed cassette (3.2.3)

• Top cover (3.2.4)

• Front cover, right cover (3.2.7)

• Right front door (3.2.6)

2. Remove:

• Front cover

• Right cover

NOTE: You can remove the right cover by first removing the two screws of the

rear cover and then releasing the upper pawls of the right cover.

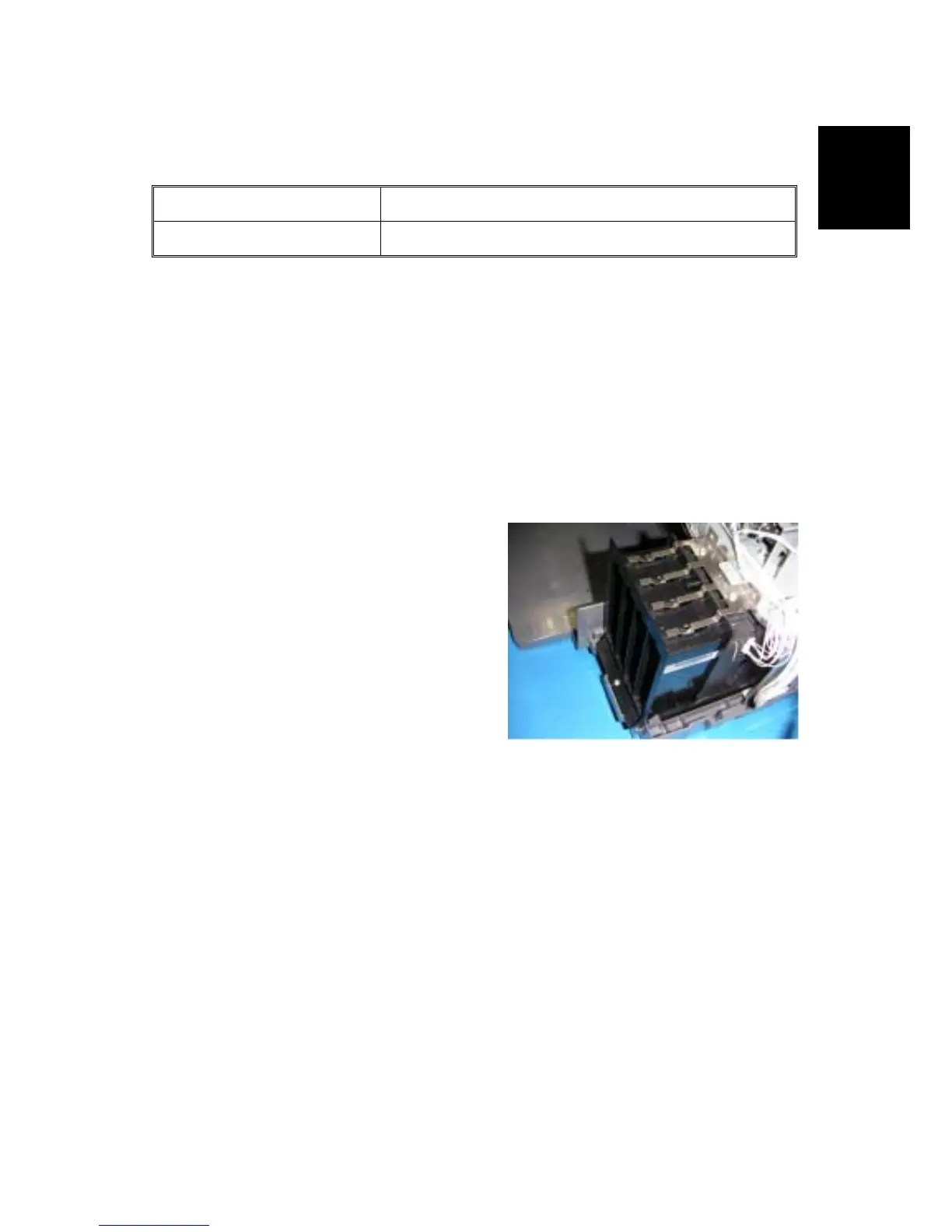

3. Remove the lock screws , ,  of

the ink supply unit (x3).







