Removing the Covers
SM 3-11 J007/J010/J011
J007/J010/
J011
Reinstallation
1. Insert the tabs into the cutouts.
2. Push the door to the left.
3. Push down tab
so it is flat. Make sure that the tab is flat.

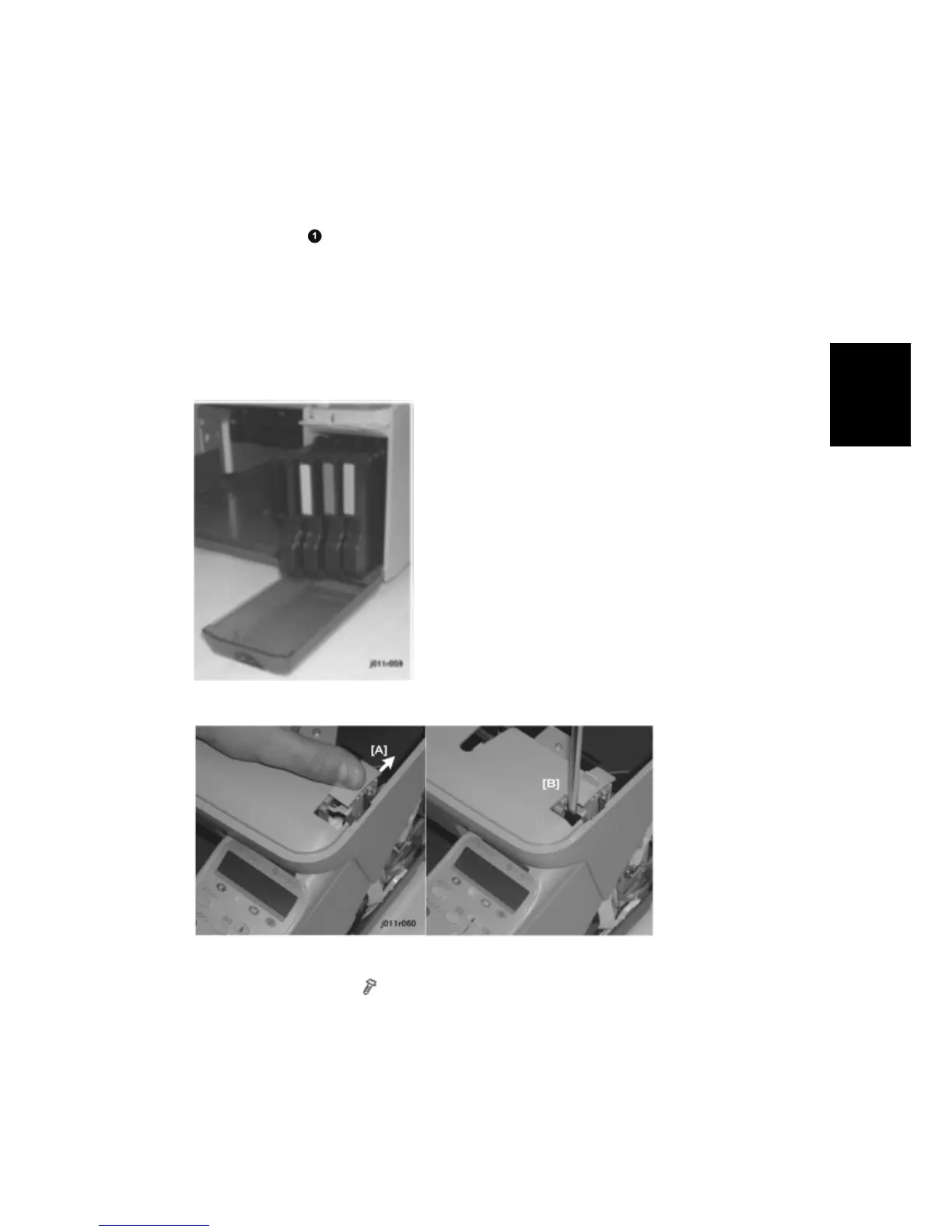

3.3.6 RIGHT FRONT COVER, OPERATION PANEL
1. Remove:
Output tray
Paper cassette
Right front door
2. Pull out the Print cartridges (K, C, M, Y)
3. Push the envelope selector [A] to the rear so you can see the screw below.
4. Remove the screw [B] (
x1).
