Component Removal
SM 3-25 J007/J010/J011
J007/J010/
J011

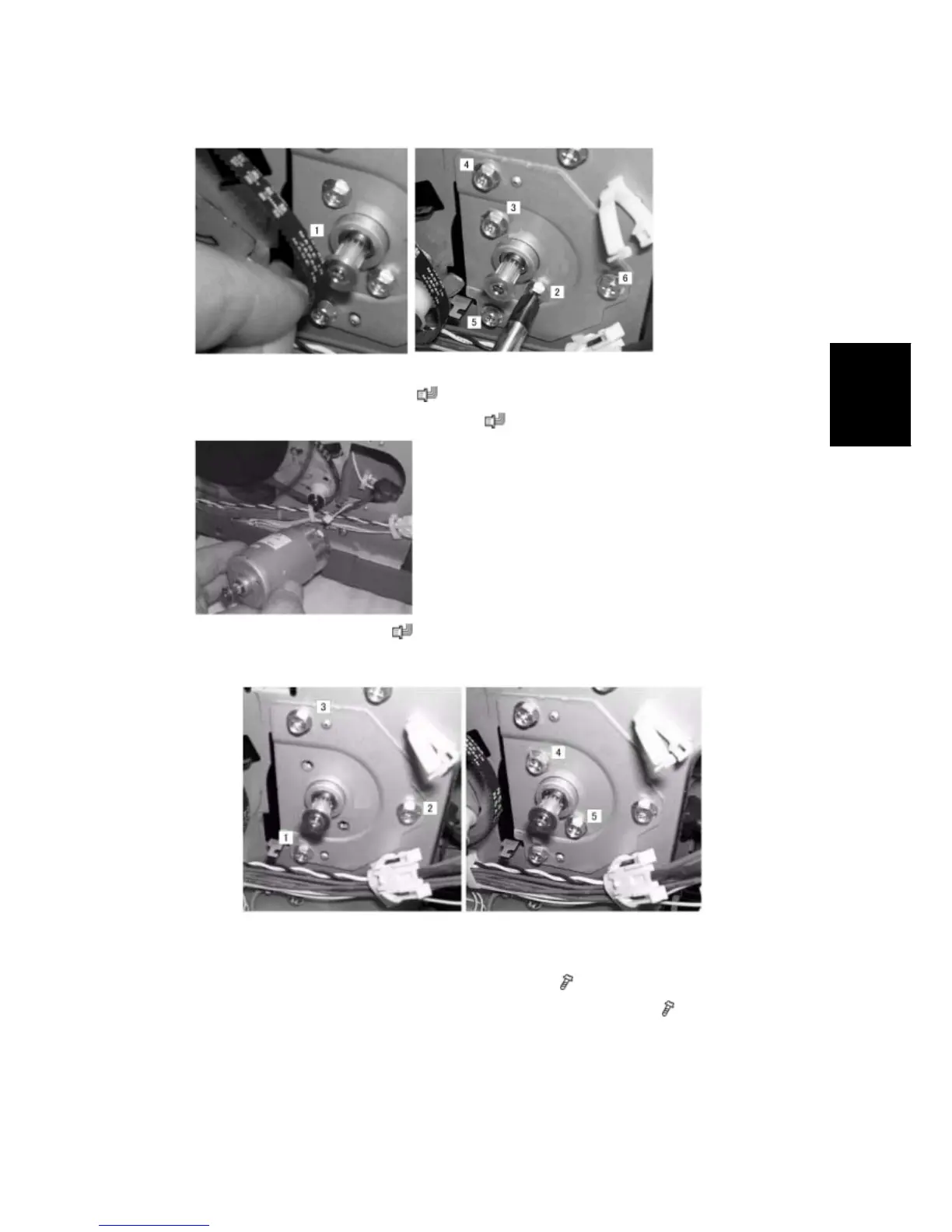

3. Remove timing belt [1].
4. Remove motor screws [2], [3] (
x2)
5. Remove motor plate screws [4], [5], [6] (
x3).
6. Pull out the vertical motor (
x1).
Reassembly
1. Connect the motor and insert it.
2. Make sure the motor is perfectly horizontal.
3. Position the plate and reattach screws [1], [2], [3] (
x3).
4. Attach the motor screws [4], [5] to fasten the motor to the plate (
x2).
