Ricoh M047 - Dip Switches; Controller Board

Dip Switches
SM 5-10 M047
5.4 DIP SWITCHES

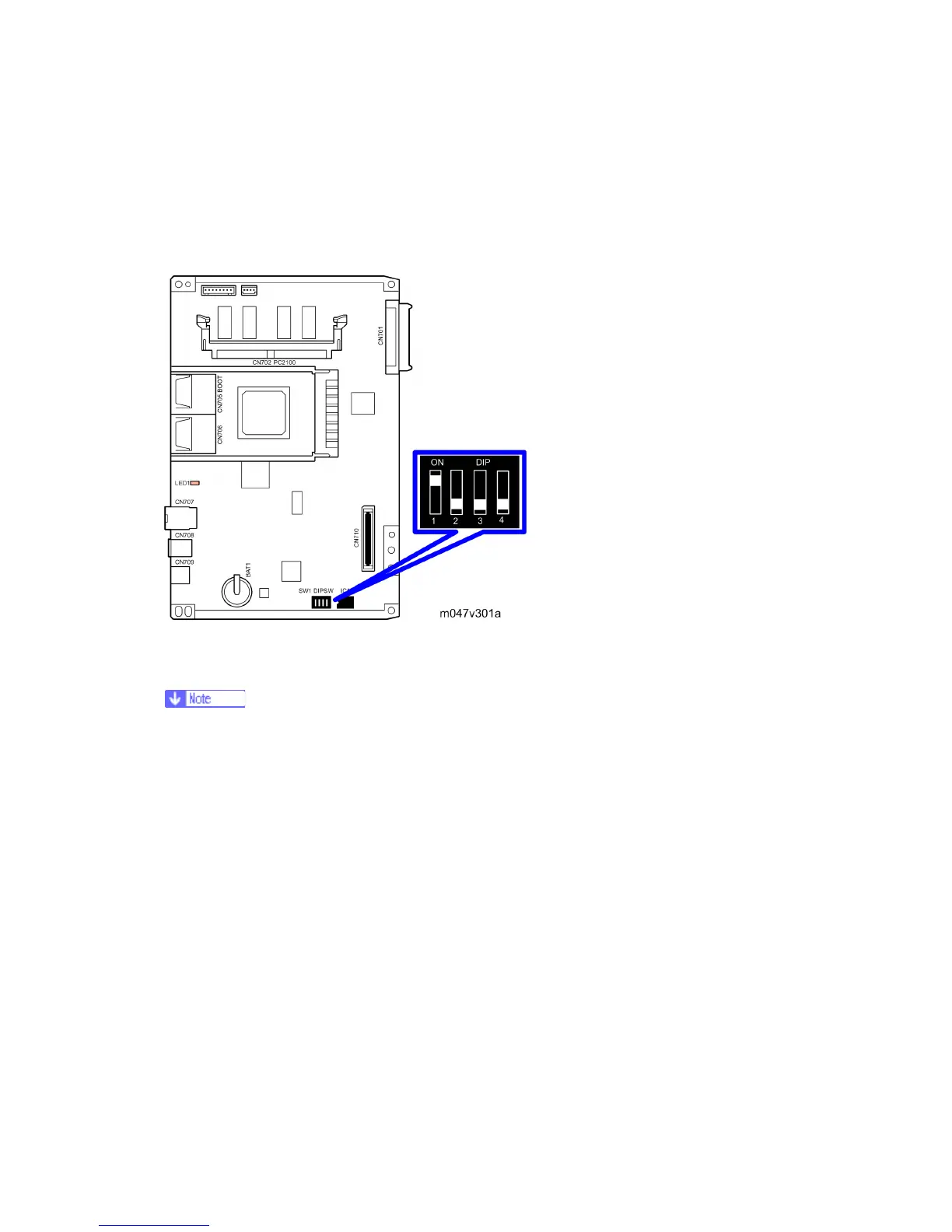

5.4.1 CONTROLLER BOARD
DIP Switch 1 (Bit 1) on the controller board is used for the error recovery after the firmware
updating procedure failed.
 The default settings of the DIP Switches are as followed; "No.1: ON" and "No. 2 to
4: OFF .”
