Ricoh M047 - Hot Roller Strippers

Fusing
SM 4-28 M047

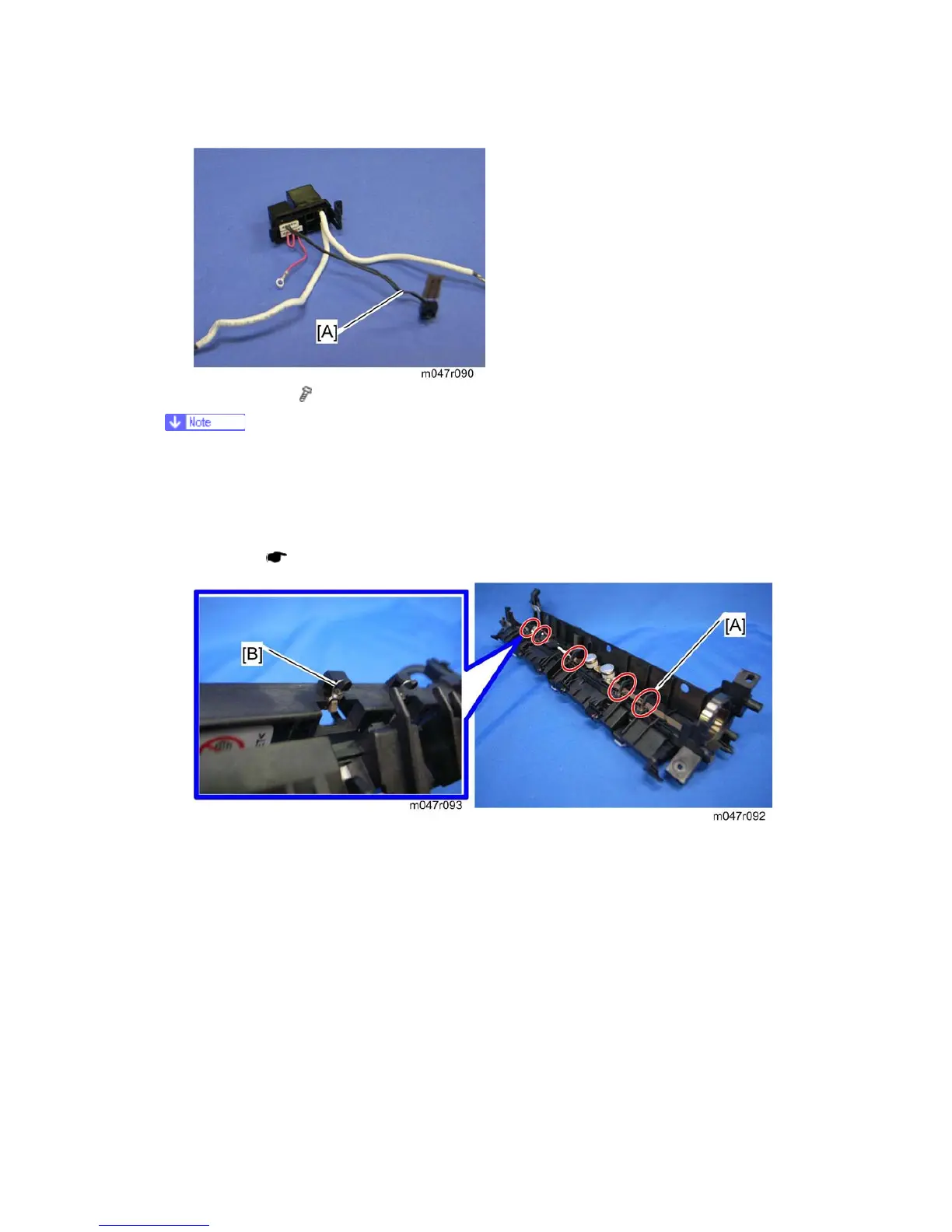

7. Thermistor [A] (
x 1, 1 harness)
 When removing the thermistor, remove the entire unit first and then separate it into
two parts.
4.6.5 HOT ROLLER STRIPPERS
1. Hot roller ( p.4-21 "Hot Roller and Fusing Lamp")
2. Hot roller strippers [A] (1 spring each [B])
