Ricoh M047 - Paper End Sensor

Paper Feed
M047 4-31 SM
Replacement
and
Adjustment

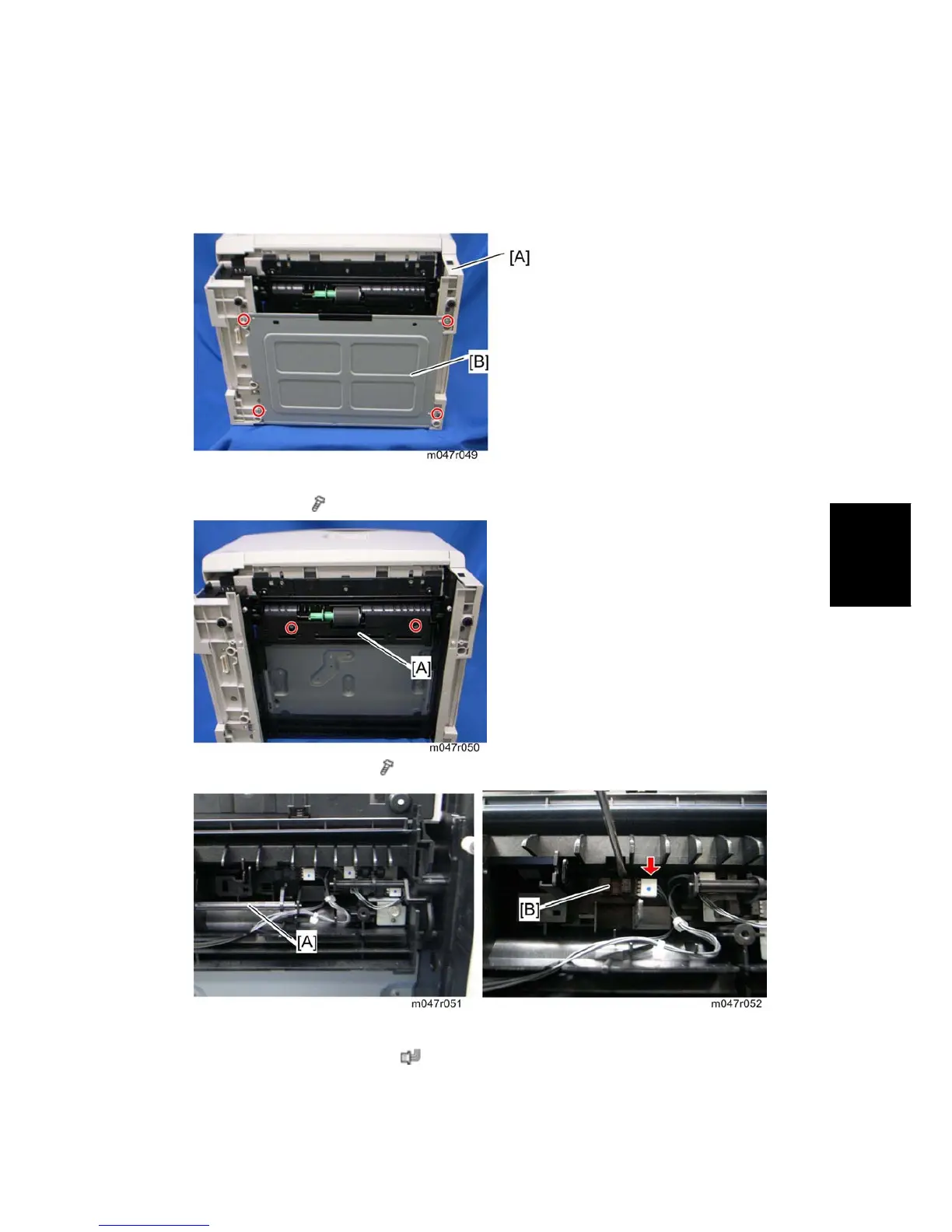

4.7.3 PAPER END SENSOR
1. Pull out the paper tray.
2. Set the machine [A] on the table with the rear side facing down.
3. Bottom plate [B] (
x 4)
4. Paper feed guide plate [A] (
x 2)
5. Paper end feeler [A]
6. Paper end sensor [B] (hooks,
x 1)
