Ricoh M047 - By-Pass Tray

Exterior Covers
M047 4-7 SM
Replacement
and
Adjustment
4.3.4 BY-PASS TRAY

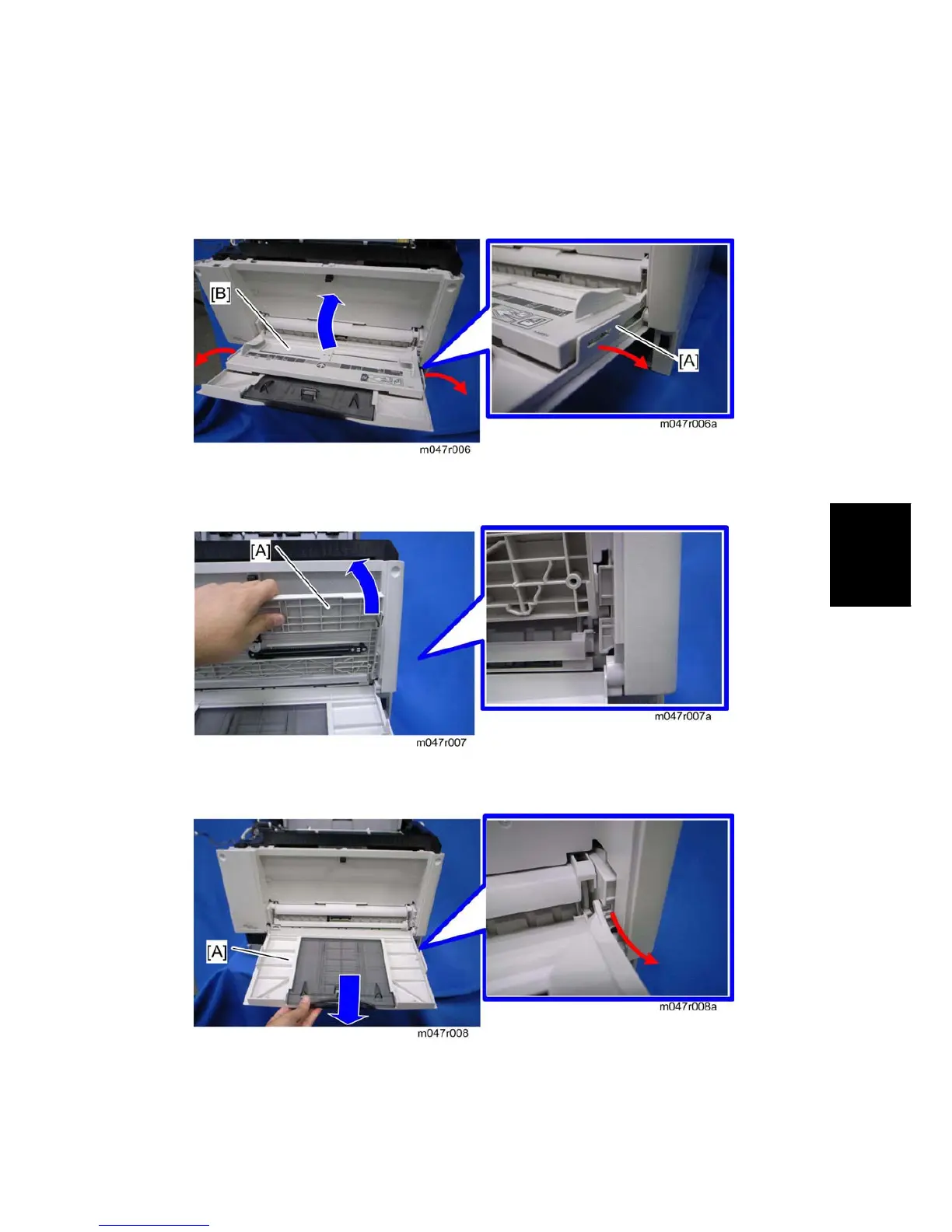

1. Open the front door.
2. Release the both rails [A] (right and left) on the by-pass tray.
3. Close the by-pass tray cover [B].
4. Lift the right edge of the by-pass tray cover [A], and then pull the by-pass tray cover to
the front.
5. By-pass tray [A].
