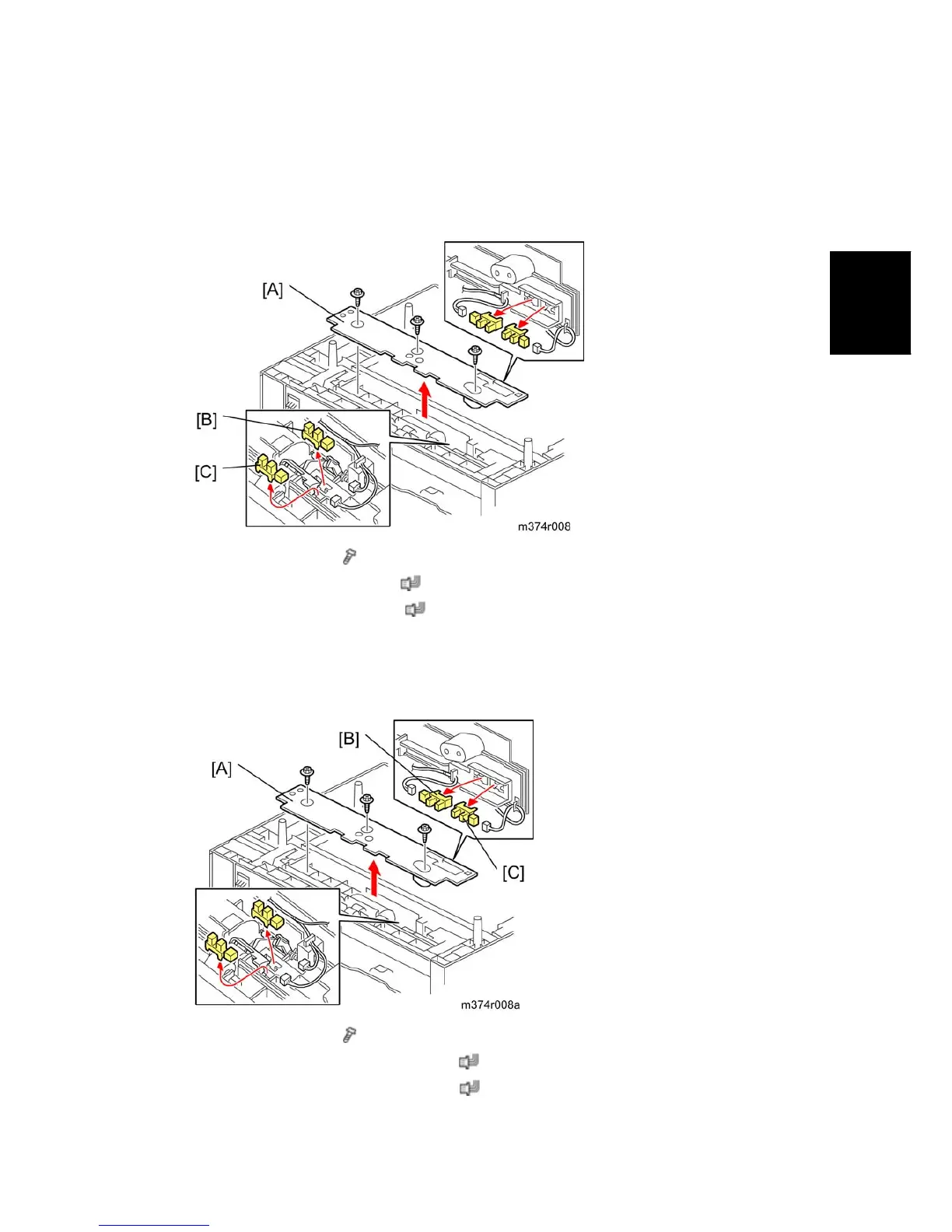

1.2.4 PAPER FEED AND END SENSORS
1. Pull out the paper tray.
2. Paper feed cover [A] (
x 3)
3. Paper end sensor [B] (hooks,
x 1)
4. Paper feed sensor [C] (hooks,
x 1)
1.2.5 REMAINING PAPER SENSORS
1. Pull out the paper tray.
2. Paper feed cover [A] (
x 3)
3. Remaining paper sensor 1 [B] (hooks,
x 1)
4. Remaining paper sensor 2 [C] (hooks,
x 1)
