Ricoh M047 - Remaining Paper Sensors

Paper Feed
SM 4-32 M047

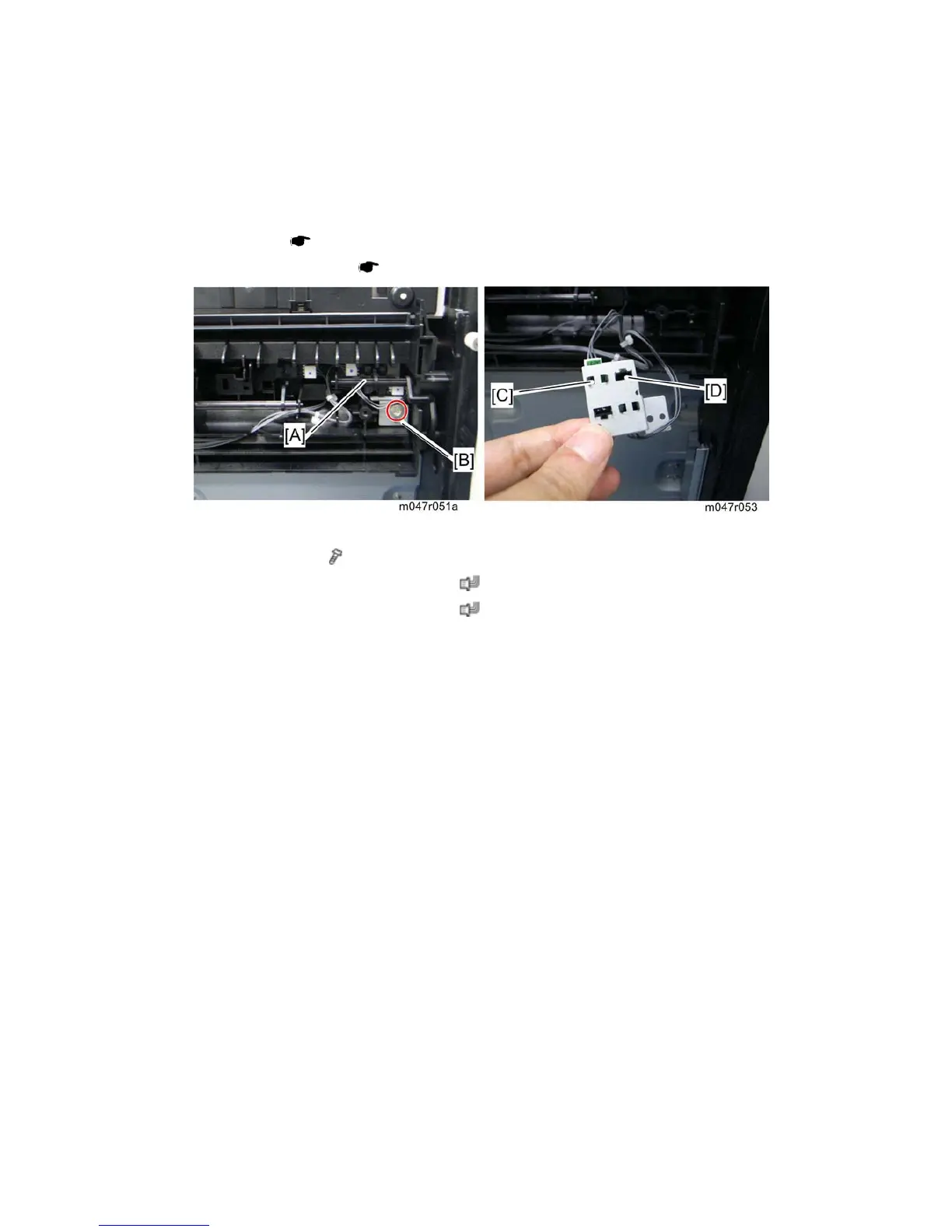

4.7.4 REMAINING PAPER SENSORS
1. Pull out the paper tray.
2. Bottom plate (
p.4-31 "Paper End Sensor")
3. Paper feed guide plate (
p.4-31 "Paper End Sensor")
4. Paper remaining feeler [A]
5. Sensor bracket [B] (
x 1)
6. Remaining paper sensor 1 [C] (hooks,
x 1)
7. Remaining paper sensor 2 [D] (hooks,
x 1)
