1.2 OVERVIEW

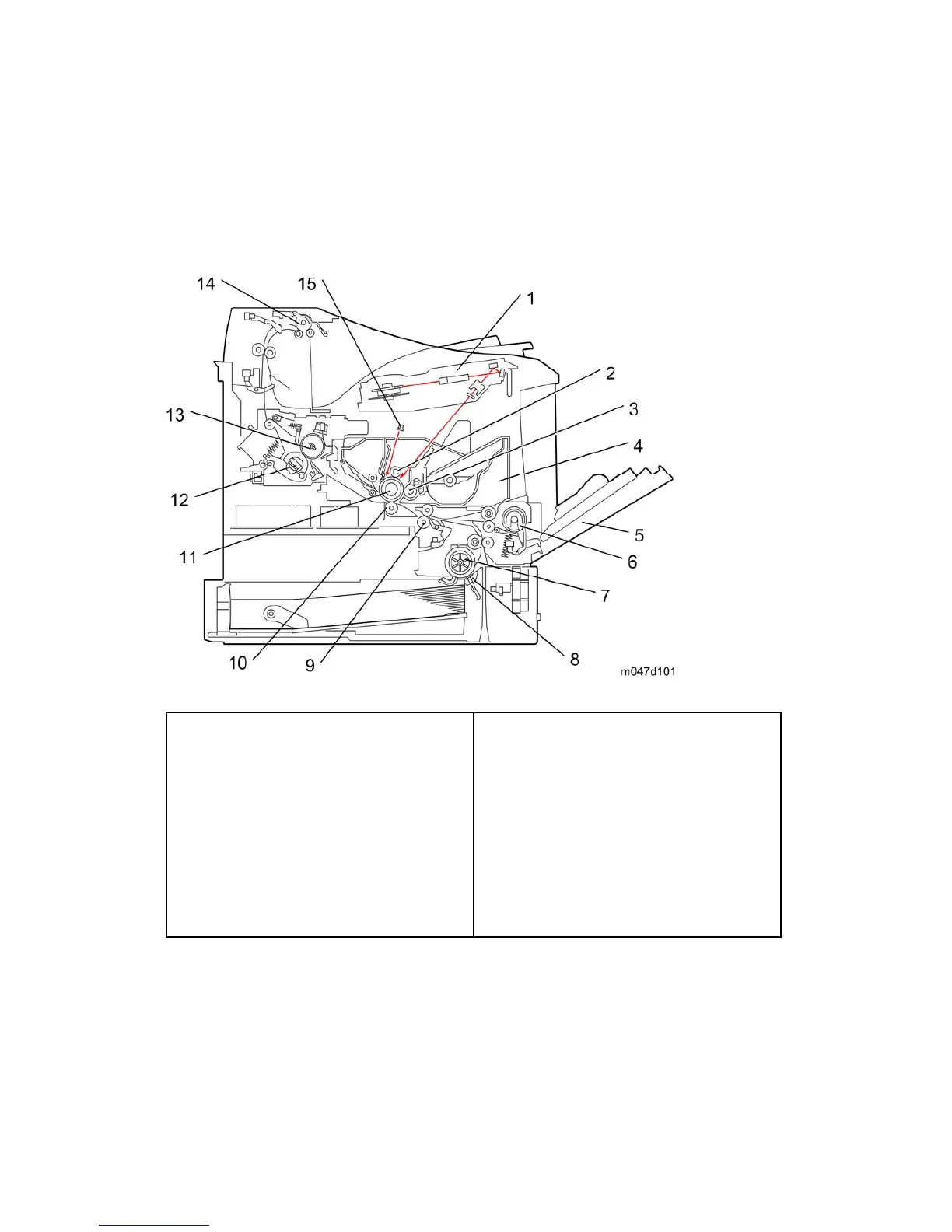

1.2.1 MECHANICAL COMPONENT LAYOUT
1: Laser unit
2: Charge roller
3: Development roller
4: Cartridge (AIO-type)
5: By-pass feed tray
6: By-pass feed roller
7: Paper feed roller
8: Friction pad
9: Registration roller
10: Transfer roller
11: Drum
12: Pressure roller
13: Hot roller
14: Paper exit roller
15: Quenching lamp
