1.2 ELECTRICAL COMPONENT
 Turn off the main power switch and unplug the machine before attempting any of
the procedures in this section.

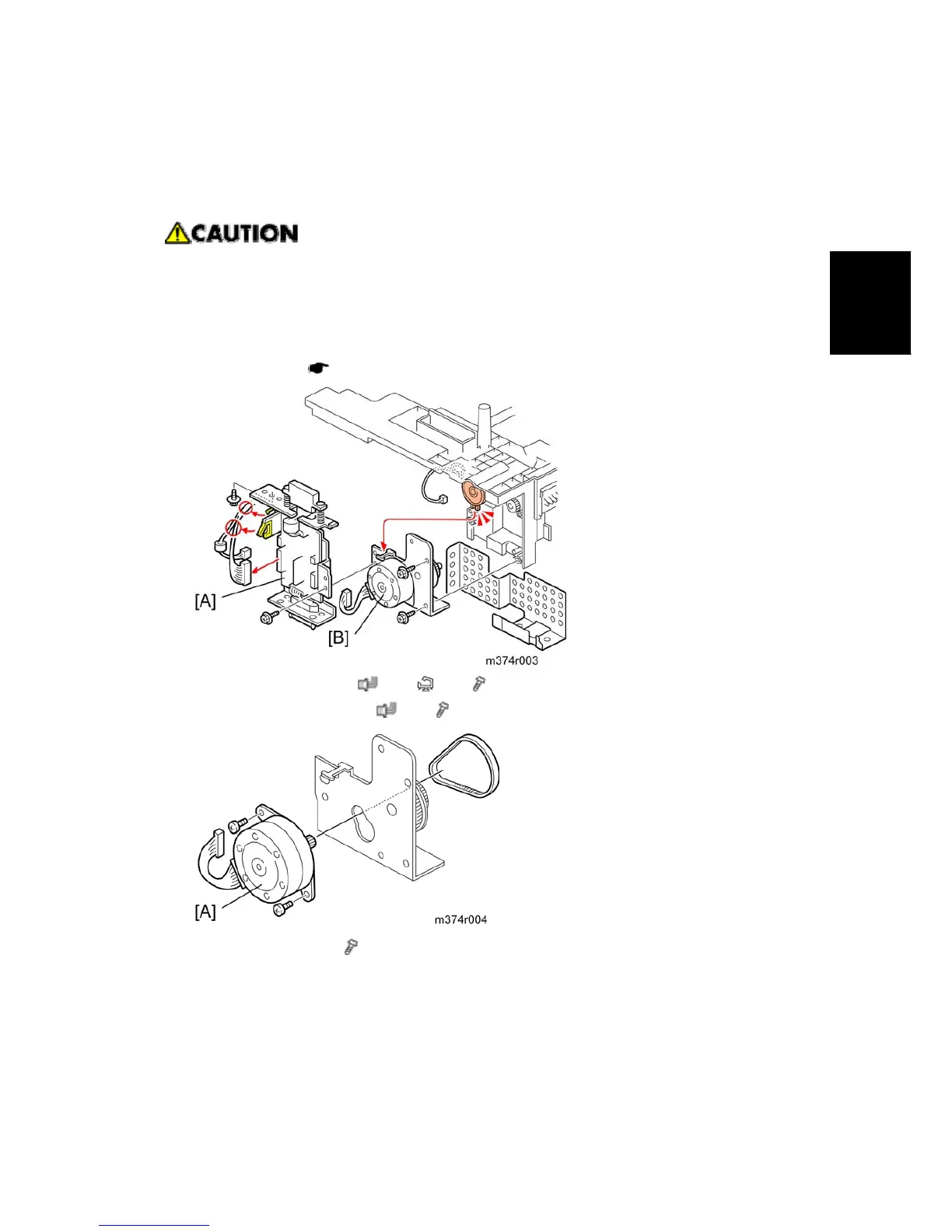

1.2.1 PAPER FEED MOTOR
1. Paper feed unit ( p.1)
2. Main board bracket [A] (
x 2, x 2, x 2)
3. Paper feed motor bracket (
x 1, x 2)
4. Paper feed motor [A] (
x 2, timing belt x 1)
