Electrical Components
SM 4-50 M047

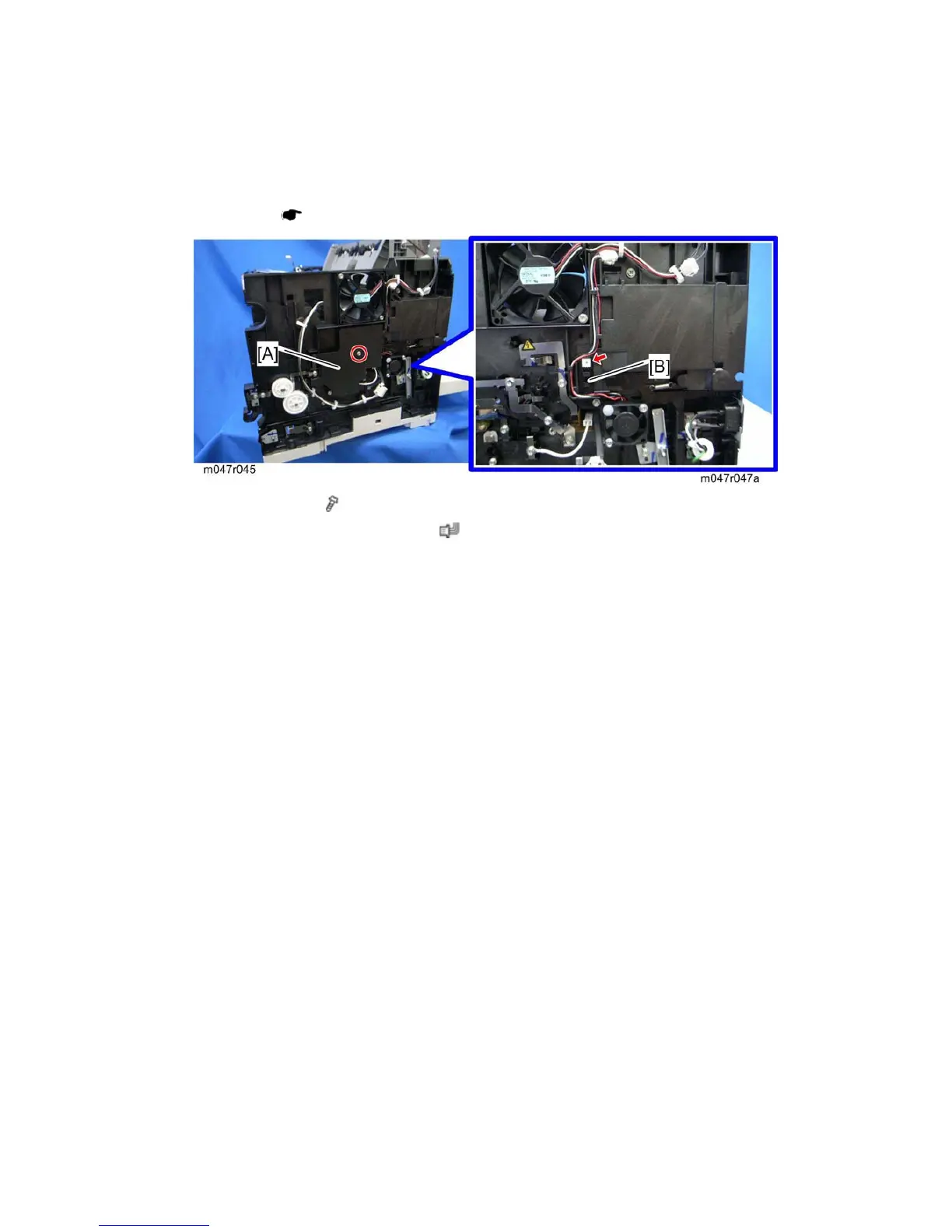

4.10.9 FUSING PRESSURE SENSOR
1. Right cover ( p.4-10)
2. Terminal cover [A] (
x 1)
3. Fusing pressure sensor [B] (hooks,
x 1)
