Ricoh M047 - Page 97

Electrical Components
M047 4-49 SM
Replacement
and
Adjustment

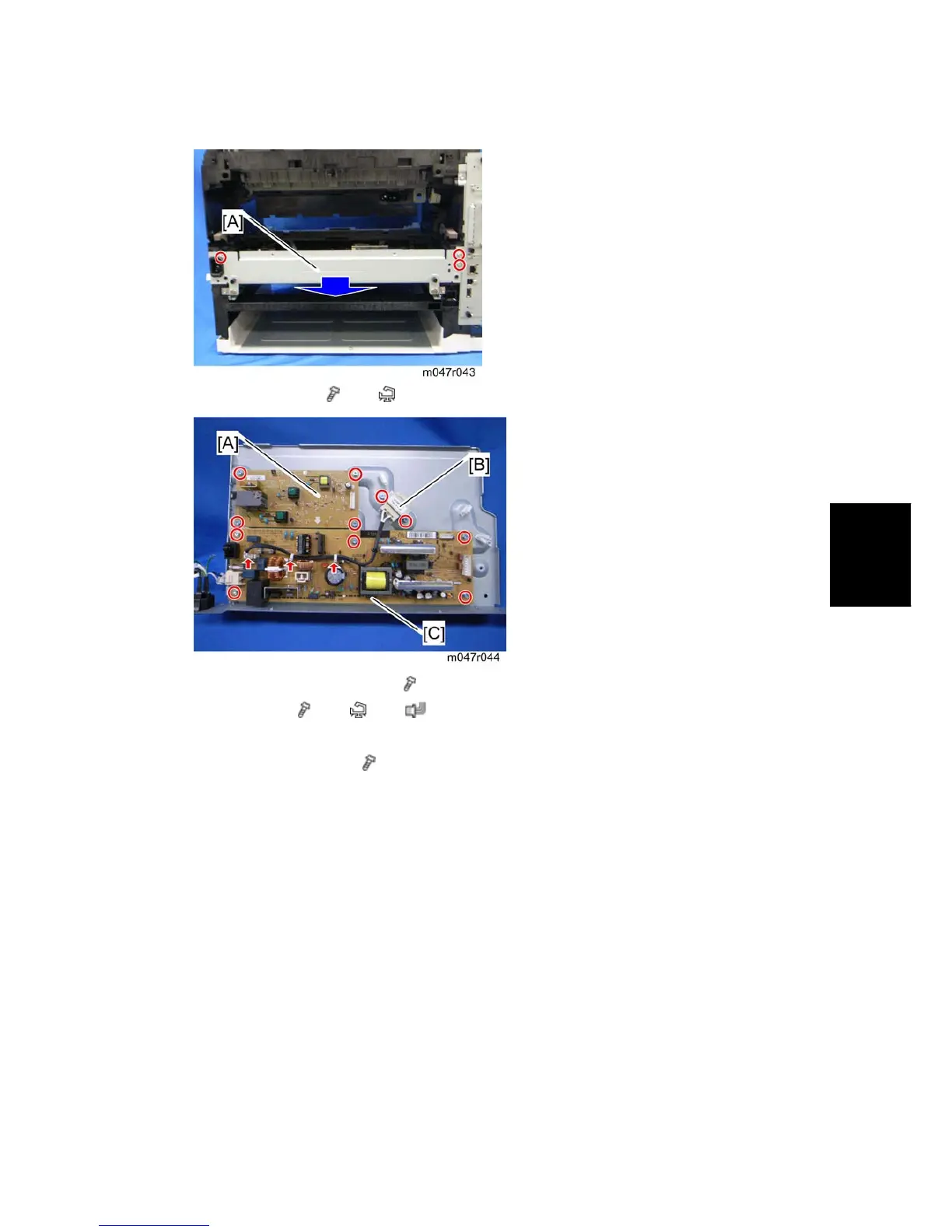

8. PSU assembly [A] (
x 3, x 3, all connectors)
9. High voltage supply board [A] (
x 4)
10. Choke coil [B] (
x 2, x 2, x 1)
 The choke coil [B] is only for EU model.
11. Power supply board [C] (
x 5)
