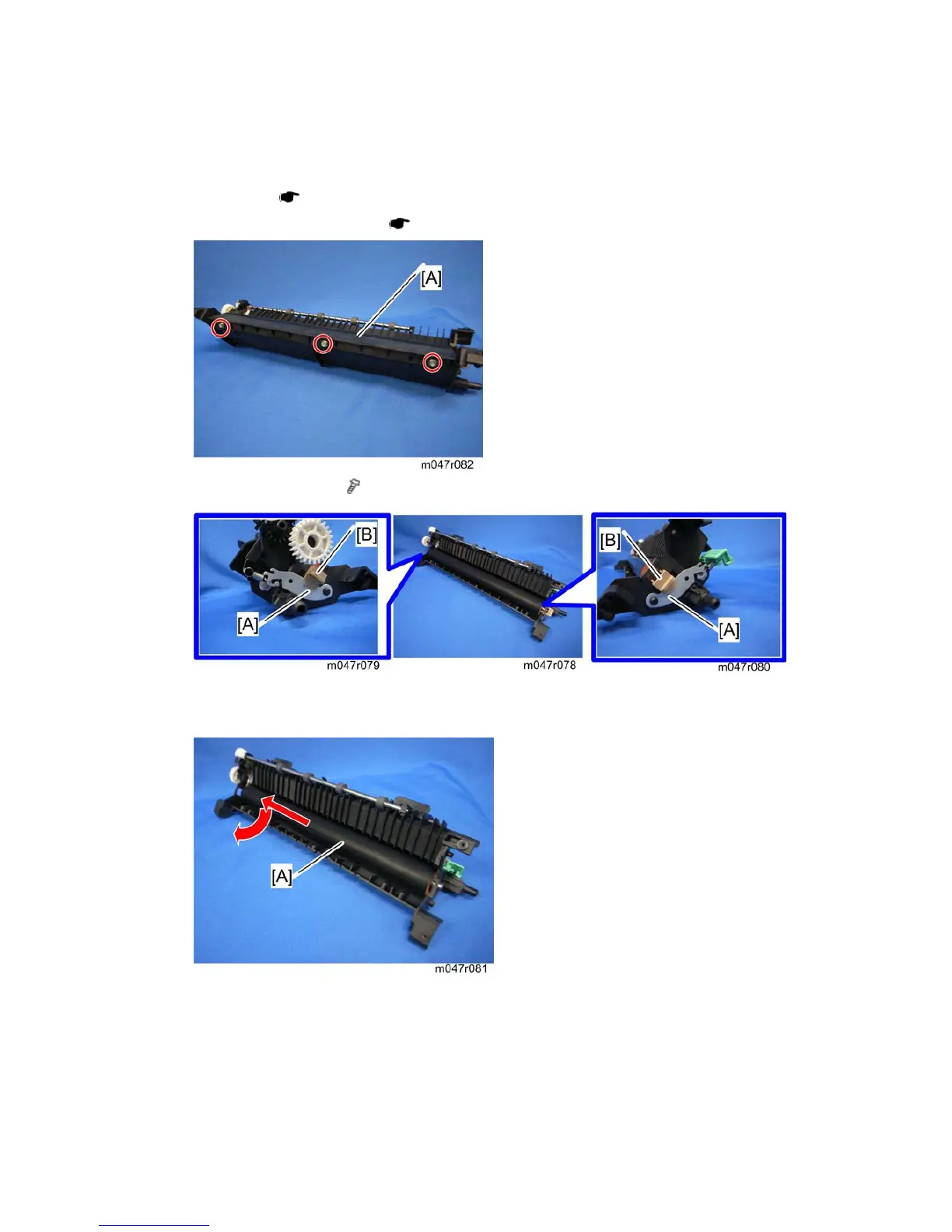

4.6.3 PRESSURE ROLLER
1. Fusing unit ( p.4-20)
2. Upper fusing unit assembly (
p.4-21 "Hot Roller and Fusing Lamp")
3. Lower guide plate [A] (
x 3)
4. Pressure roller levers [A] (spring x 1 each)
5. Bushings [B]
6. Pressure roller [A]
