Fusing
M047 4-23 SM
Replacement
and
Adjustment
8. Right lamp holder [A] ( x 2)
9. Fusing Lamp [B]
The colored cable must be at the hot roller gear side.

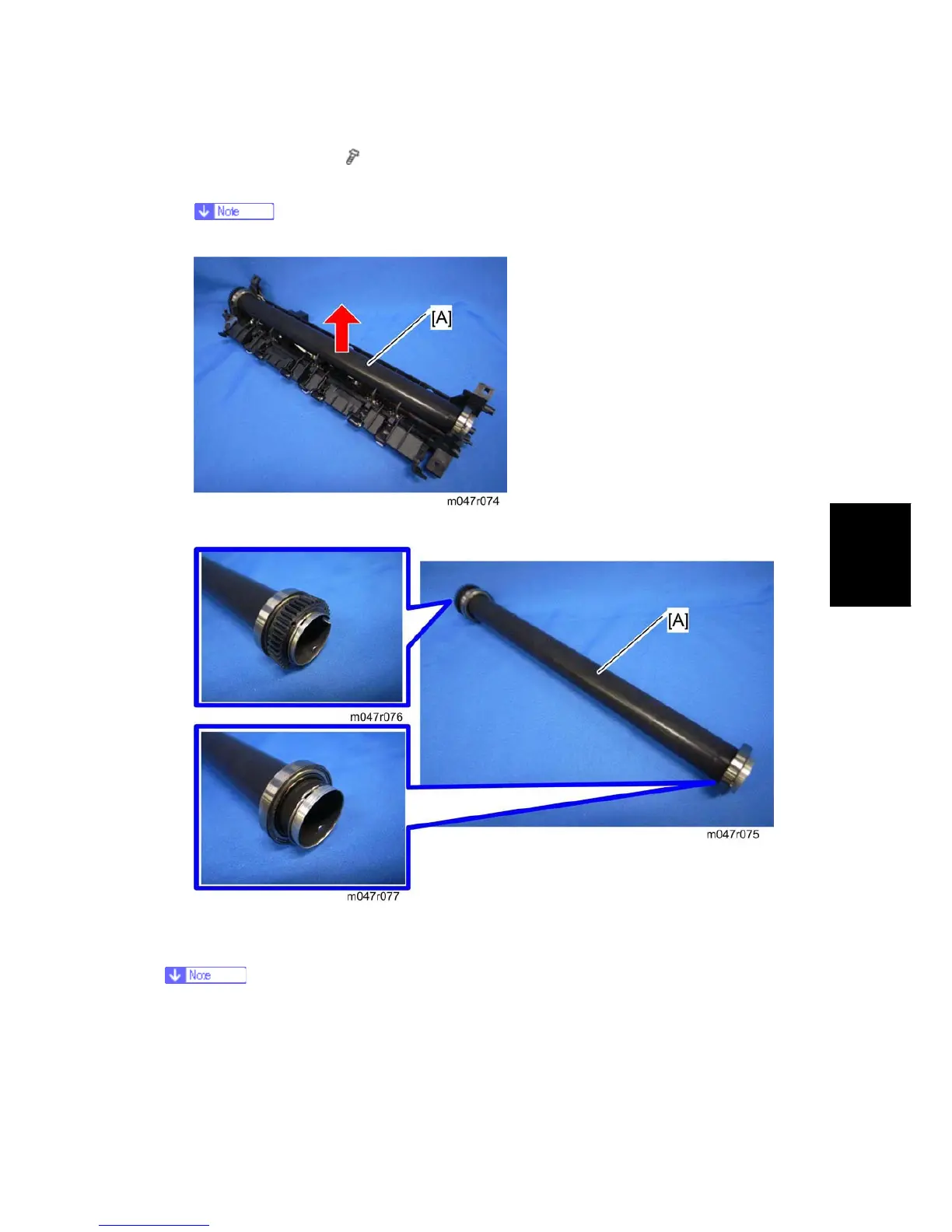

10. Hot roller assembly [A]
11. Remove the gear and bearings (left and right) (ring pin x 2)
12. Hot roller [A]
Before installing the new hot roller, peel off 3 cm (1 inch) from both ends of the
protective sheet on the new hot roller. Make sure to remove the rest of the paper
before starting the machine.
To Next Page
