Ricoh M047 - Front Door

Exterior Covers
M047 4-9 SM
Replacement
and
Adjustment

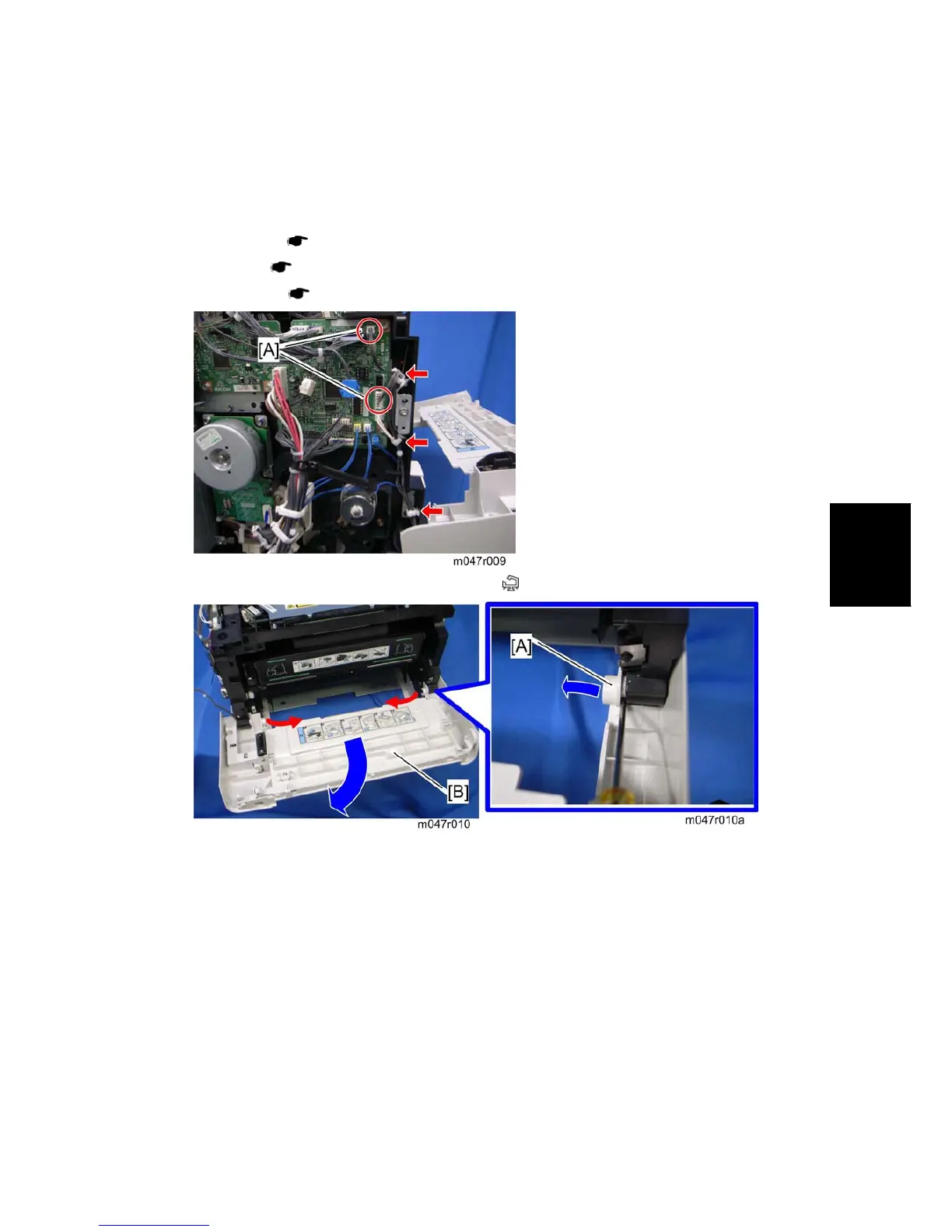

4.3.6 FRONT DOOR
1. Remove the paper tray.
2. Upper cover (
p.4-6)
3. Left cover (
p.4-8)
4. By-pass tray (
p.4-7)
5. Disconnect two connectors (CN7, CN17) [A] (
x 3).
6. Release the right hinge [A] of the front door.
7. Release the left hinge of the front door, and then remove the front door [B].
