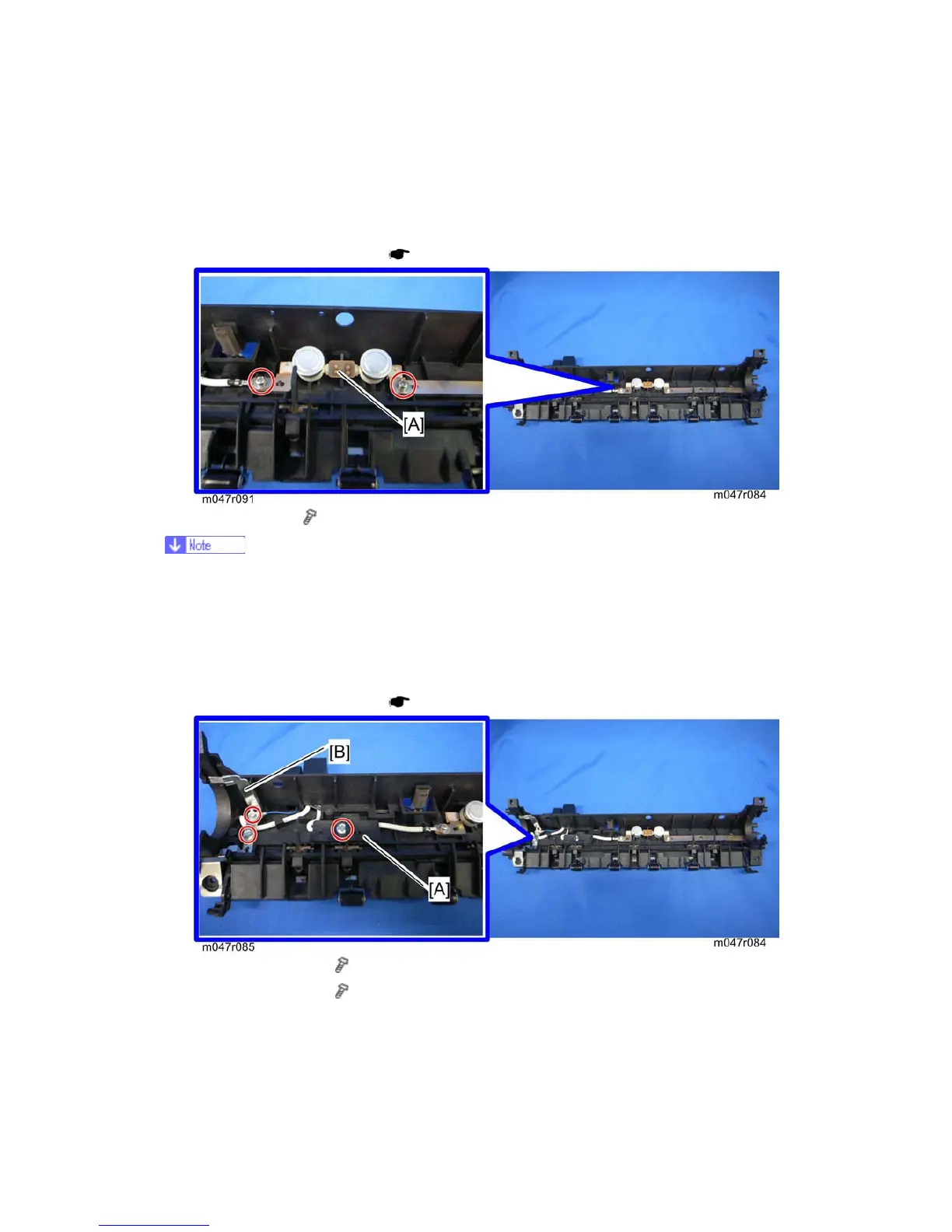

4.6.4 THERMISTOR AND THERMOSTAT
Thermostat
1. Upper fusing unit assembly ( p.4-21 "Hot Roller and Fusing Lamp")
2. Thermostat [A] (
x 2)
 Do not touch the thermostat with your hands.
 Do not re-use a thermostat that is already opened. Safety is not guaranteed if you
do this.
Thermistor
1. Upper fusing unit assembly ( p.4-21 "Hot Roller and Fusing Lamp")
2. Inner wire cover [A] (
x 1)
3. Grounding plate [B] (
x 2, 1 wire)
