Ricoh M047 - Page 75

Fusing
M047 4-27 SM
Replacement
and
Adjustment

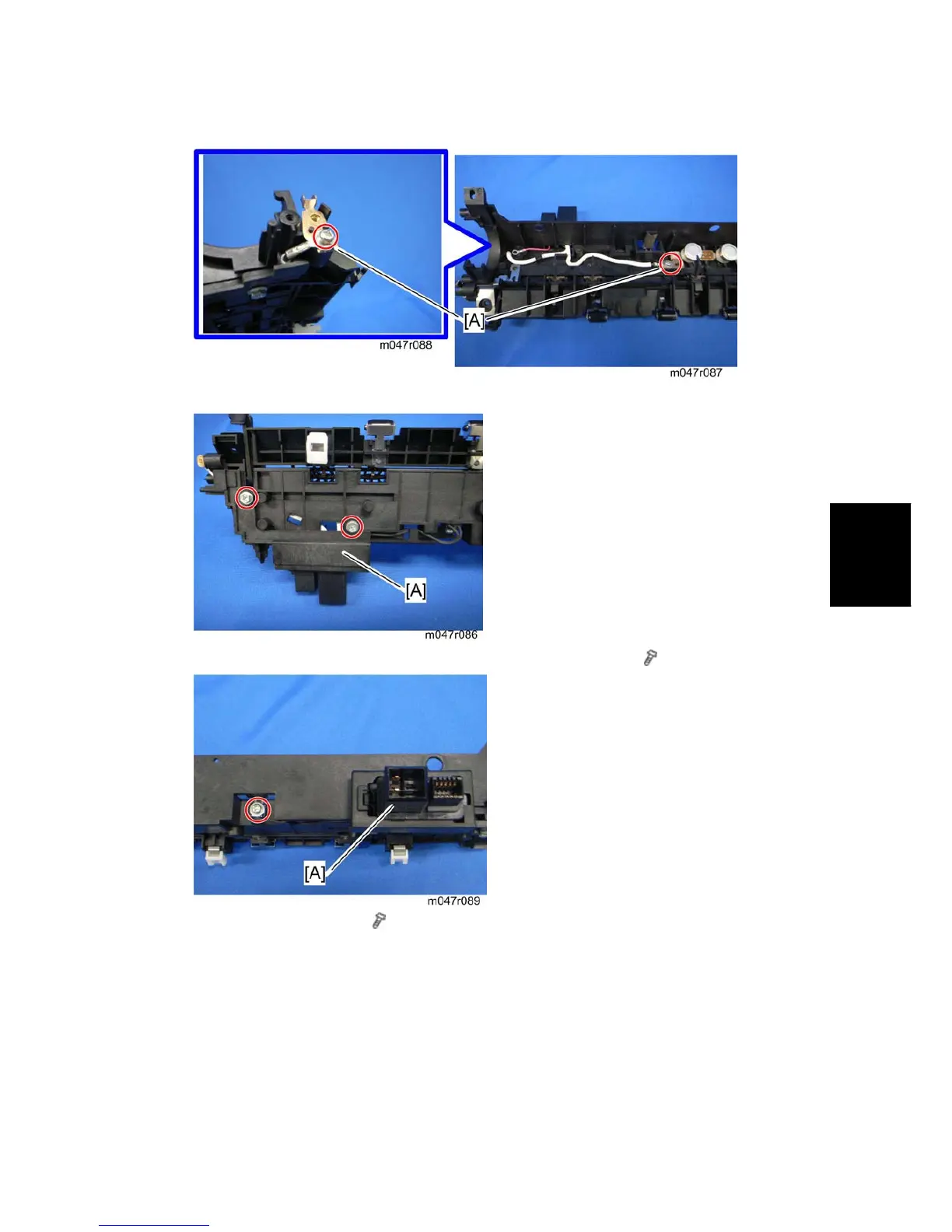

4. Remove two screws [A] of the fusing unit connector.
5. Upper wire cover [A] on the top of the fusing upper unit assembly (
x 2)
6. Fusing unit connector [A] (
x 1, 2 hooks)
