Ricoh M047 - Paper Feed Clutch

Electrical Components
SM 4-44 M047

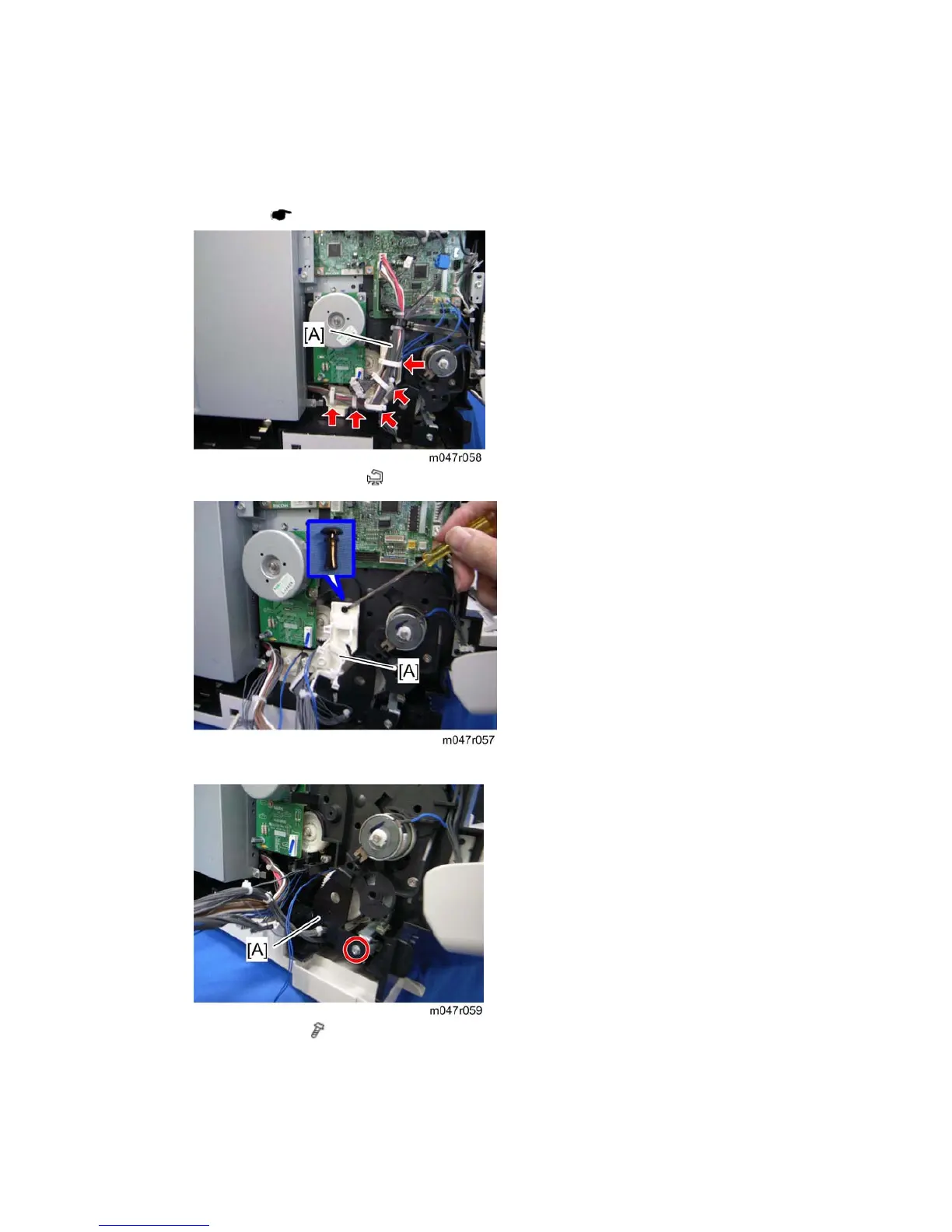

4.10.5 PAPER FEED CLUTCH
1. Left cover ( p.4-8)
2. Release the harness [A] ( x 5, all connectors)
3. Harness guide [A] (Rivet screw x 1)
4. Clutch cover [A] (
x 1)
