Ricoh M047 - Replacement and Adjustment; Exterior Covers; Rear Upper, Right and Left Covers

Exterior Covers
SM 1 G806
G806
Duplex Unit
Type
AD610
1. REPLACEMENT AND ADJUSTMENT
1.1 EXTERIOR COVERS
 Turn off the main power switch and unplug the machine before attempting any of
the procedures in this section.

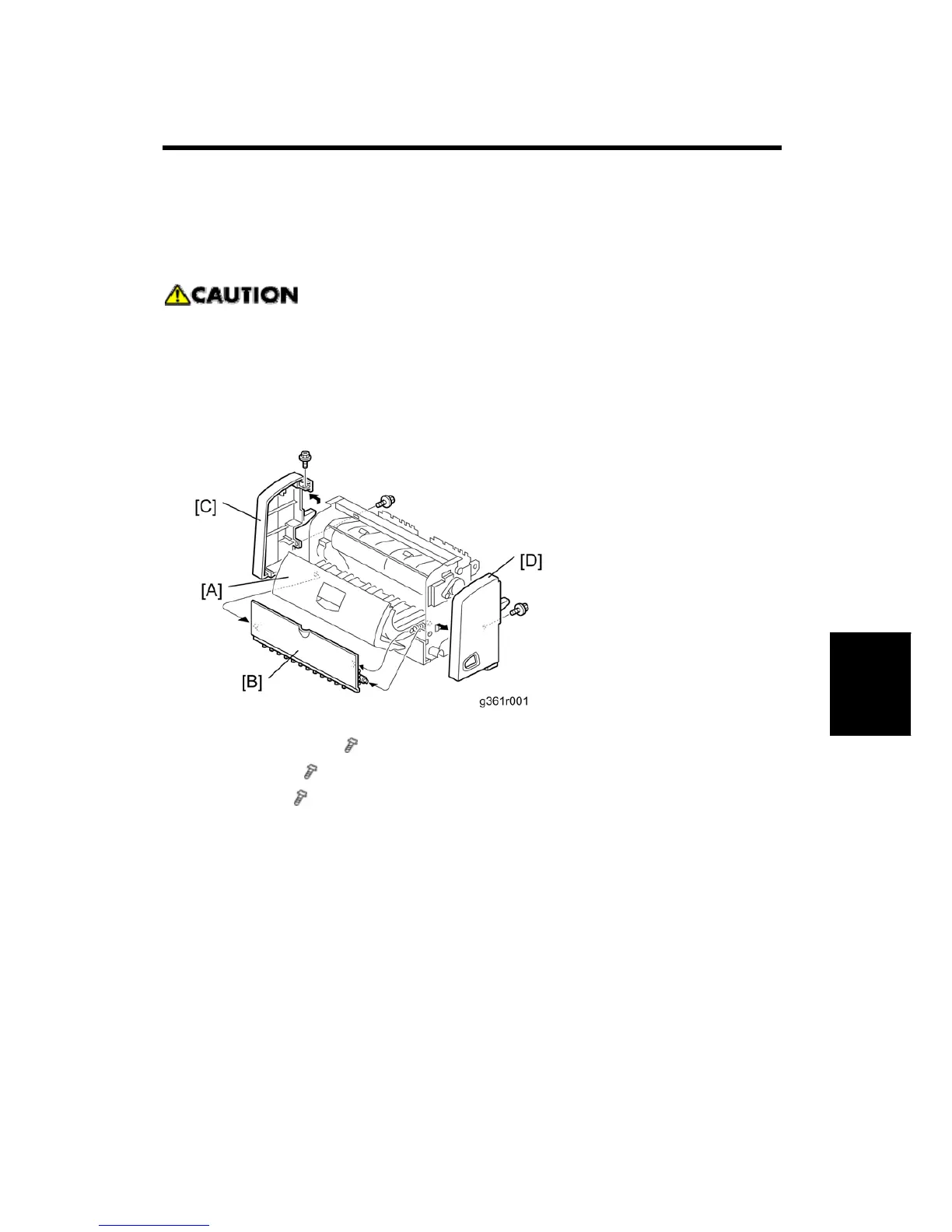

1.1.1 REAR UPPER, RIGHT AND LEFT COVERS
1. Remove the duplex unit from the main unit.
2. Open the upper cover [A].
3. Rear upper cover [B] (
x 2)
4. Right cover [C] (
x 2)
5. Left cover [D] (
x 1)
