Ricoh M047 - Rear Cover; Upper Cover

Exterior Covers
SM 4-6 M047
4.3.2 REAR COVER

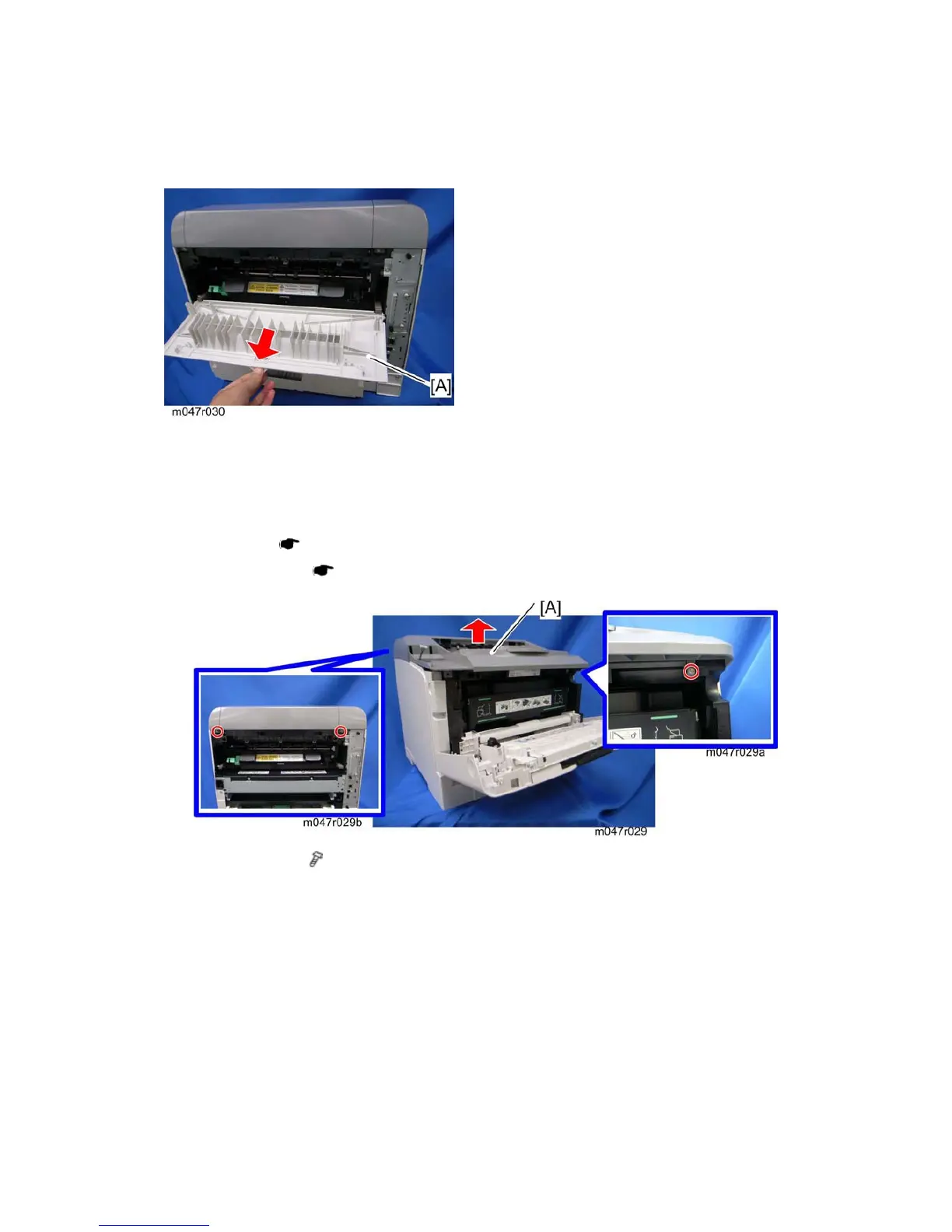

1. Rear cover [A]
4.3.3 UPPER COVER
1. Remove the AIO.
2. Rear cover (
p.4-6)
3. Operation panel (
p.4-5)
4. Upper cover [A] (
x 3)
