Ricoh M047 - Power Supply Board and High Voltage Supply Board

Electrical Components
SM 4-48 M047
4.10.8 POWER SUPPLY BOARD AND HIGH VOLTAGE SUPPLY
BOARD
1. Left cover ( p.4-8)
2. Fusing unit (
p.4-20)
3. PSU cover [A] (
x 2)

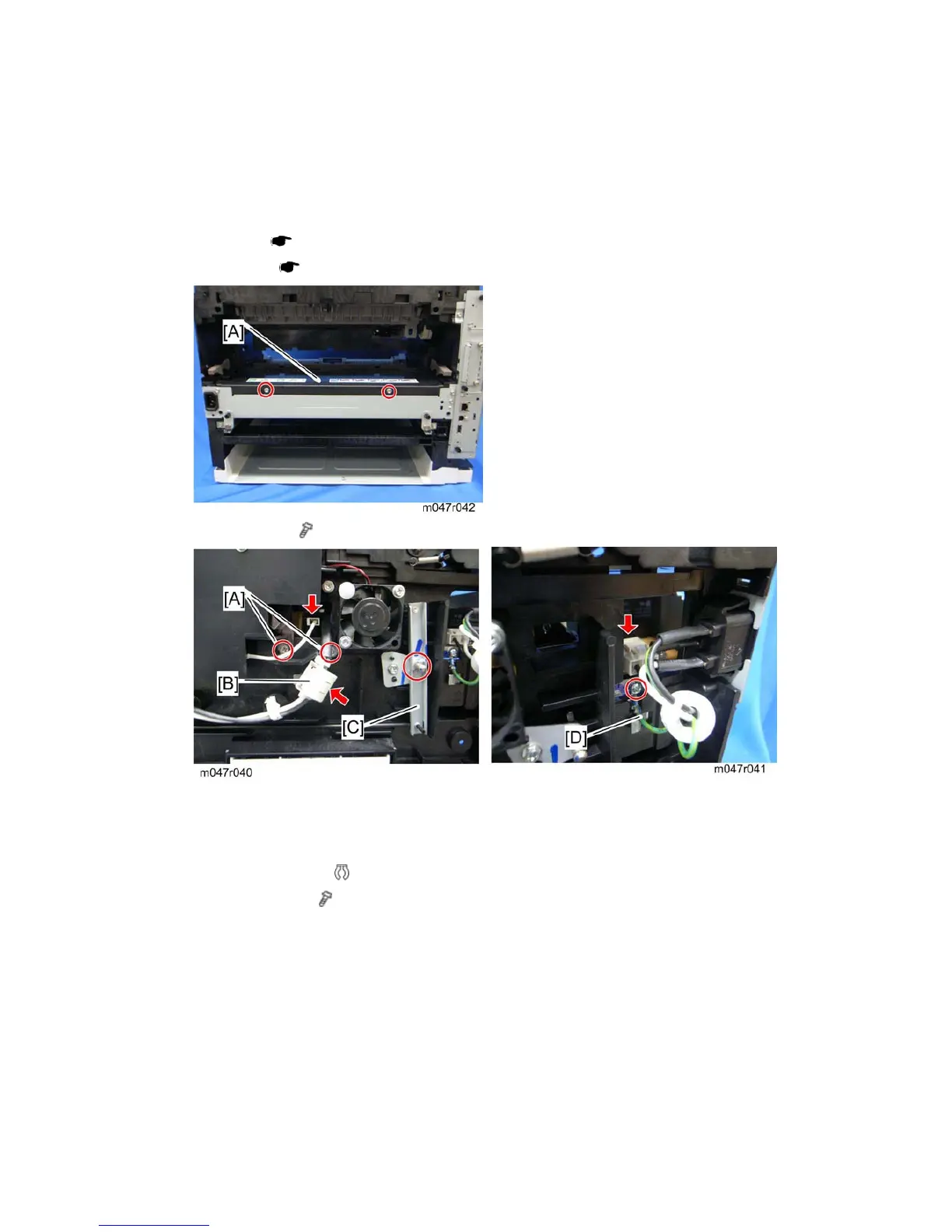

4. Remove the two screws [A] at the left of the machine.
5. Disconnect three cables (pointed by arrow mark).
 Disconnect the cable [B] from the rear of the machine.
6. Main switch link [C] (
x 1)
7. Ground cable [D] (
x 1: washer screw)
