Ricoh M047 - When Reinstalling the Laser Unit

Laser Unit
M047 4-15 SM
Replacement
and
Adjustment
When reinstalling the laser unit
Use the scanner positioning pins (P/N: A0069104) to reinstall the unit.

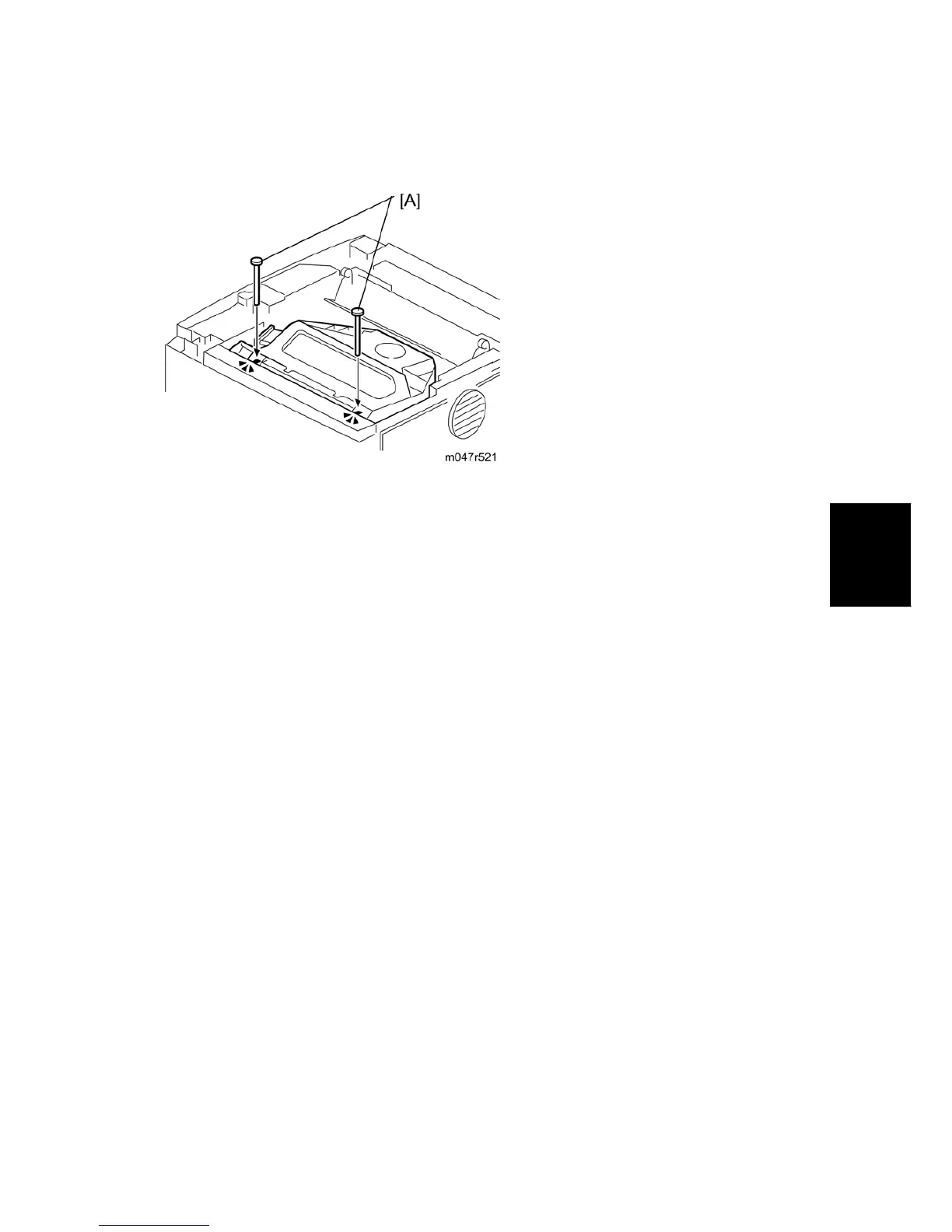

Set the positioning pins [A] as shown above. Then secure the laser unit.
