Exterior Covers
G806 2 SM

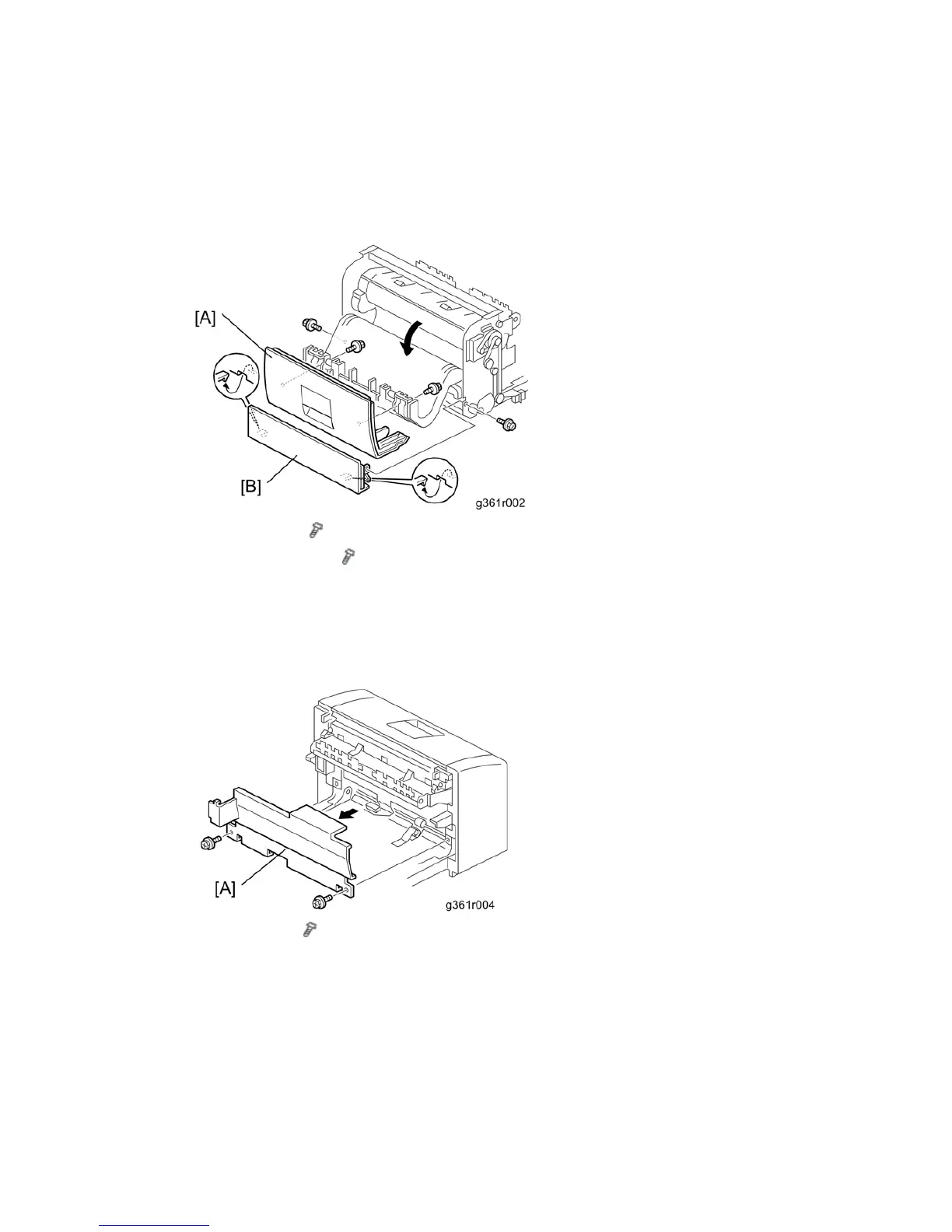

1.1.2 UPPER AND REAR LOWER COVERS
1. Remove the duplex unit from the main unit.
2. Upper cover [A] (
x 2)
3. Rear lower cover [B] (
x 2)
1.1.3 FRONT COVER
1. Remove the duplex unit from the main unit.
2. Front cover [A] ( x 2)
