Ricoh M047 - Fusing Fan; Psu Fan

Electrical Components
M047 4-51 SM
Replacement
and
Adjustment

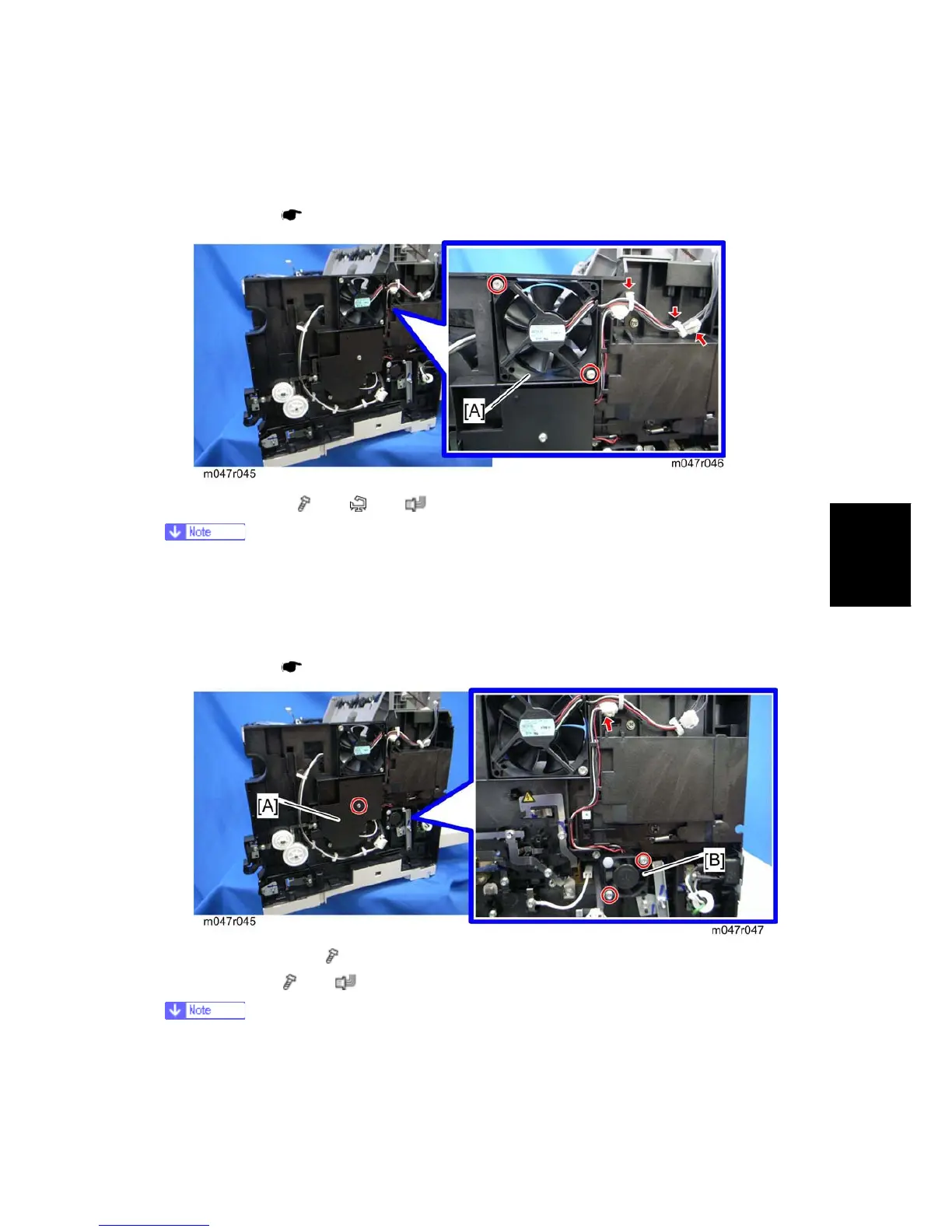

4.10.10 FUSING FAN
1. Right cover ( p.4-10)
2. Fusing fan [A] ( x 2, x 2, x1)
 The fusing fan must be reinstalled with the decal facing right. Do not reinstall the
fusing fan opposite to the original position.
4.10.11 PSU FAN
1. Right cover ( p.4-10)
2. Terminal cover [A] (
x 1)
3. PSU fan [B] (
x 2, x 1)
 The PSU fan must be reinstalled with the decal facing left. Do not reinstall the PSU
fan opposite to the original position.
