Ricoh M047 - By-Pass Friction Pad

By-pass Feed
M047 4-35 SM
Replacement
and
Adjustment

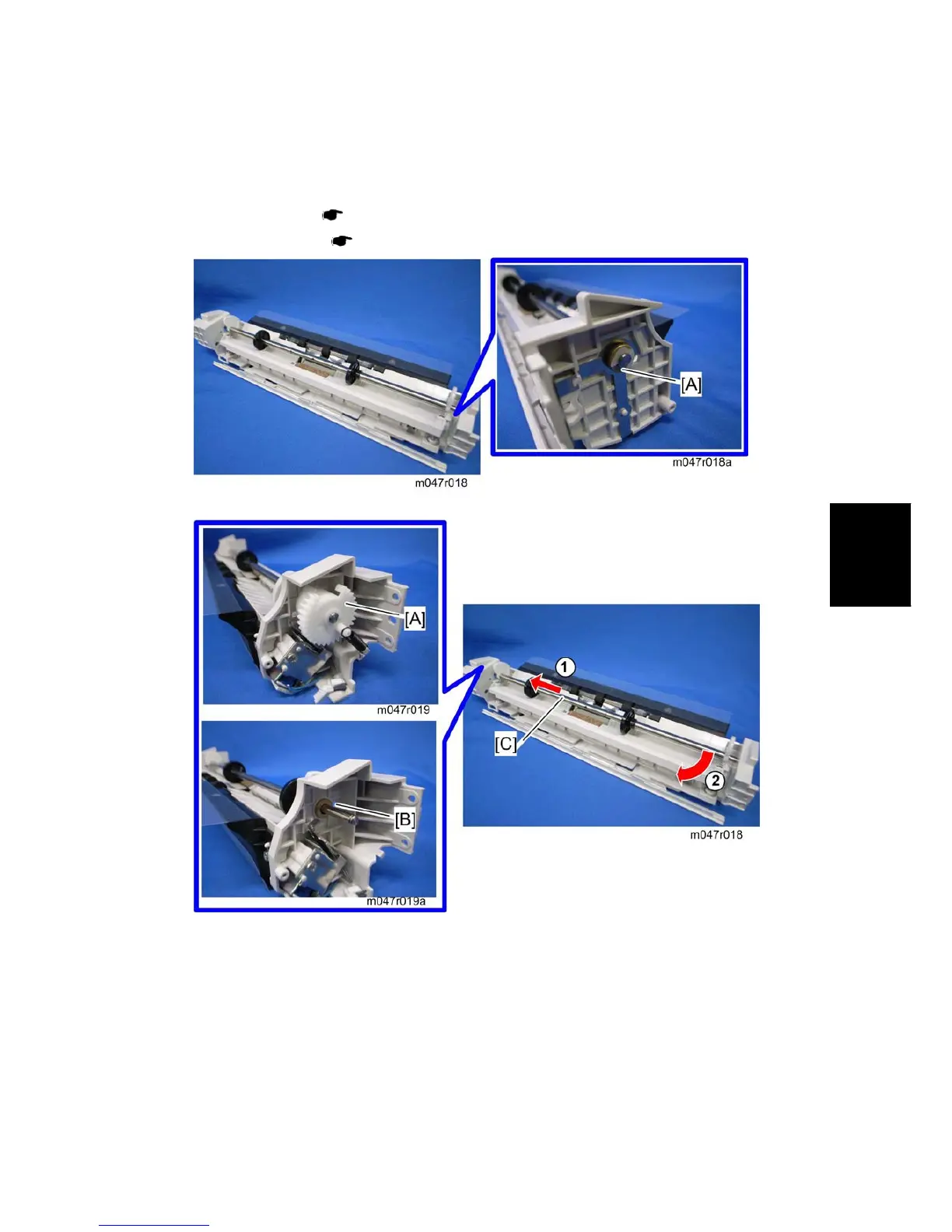

4.8.3 BY-PASS FRICTION PAD
1. By-pass feed unit ( p.4-33)
2. By-pass feed roller (
p.4-34)
3. Bushing [A] at the right edge of the by-pass feed roller shaft (Clip x 1)
4. By-pass feed gear [A] (spring x 1, clip x 1)
5. Bushing [B] at the left edge of the by-pass feed roller shaft
6. Slide the by-pass feed roller shaft [C] to the left, and then remove it.
