By-pass Feed
SM 4-36 M047

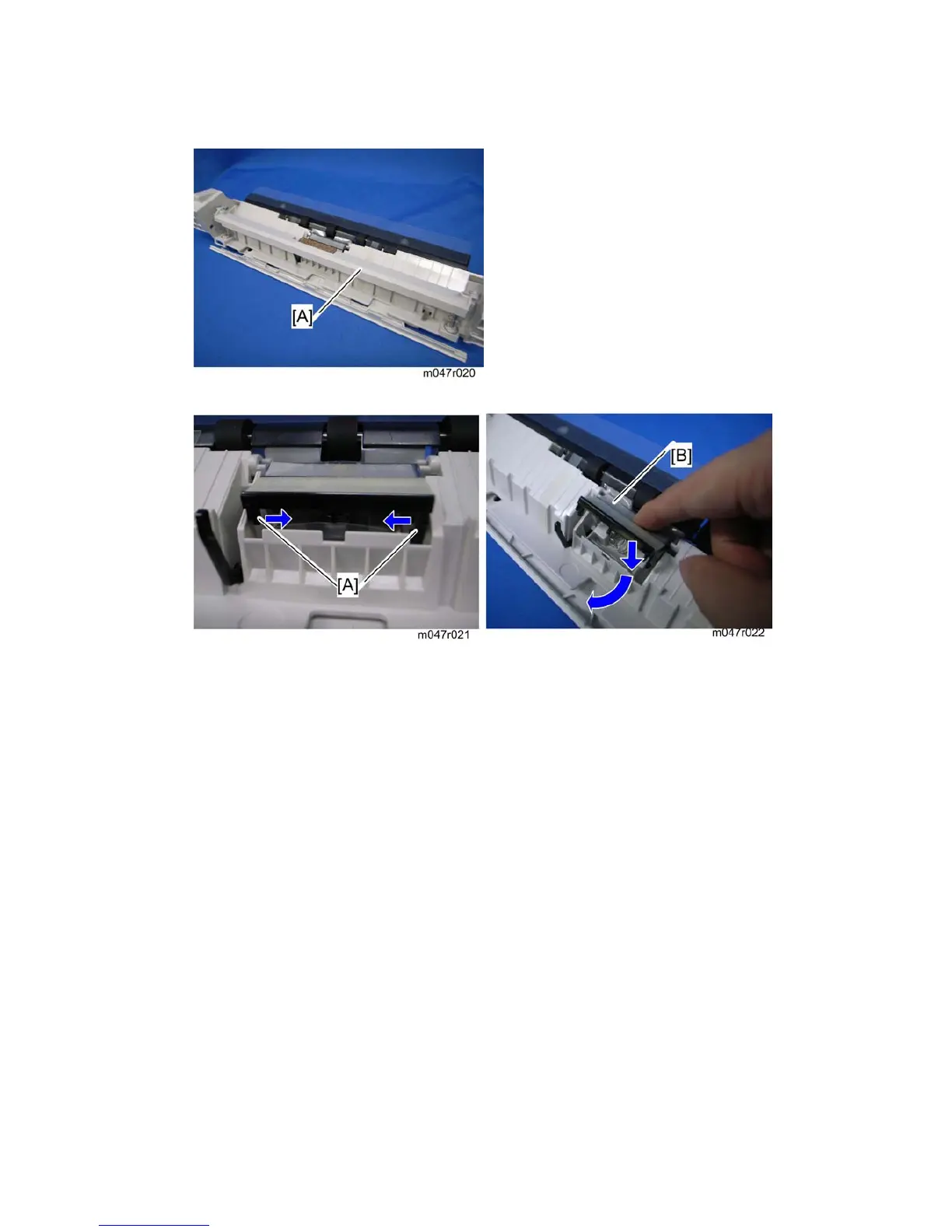

7. Bottom bar [A] with two springs
8. Release the two hooks [A].
9. Press down the by-pass friction pad [B], and then pull it out (spring x 1).
