Fusing
SM 4-22 M047
Remove both springs before taking apart the fusing unit assembly. The reason
for this is to relieve pressure on the unit.
When reinstalling the fusing unit assembly, install both springs last. The
reason for this is to reset the springs back to their default position.

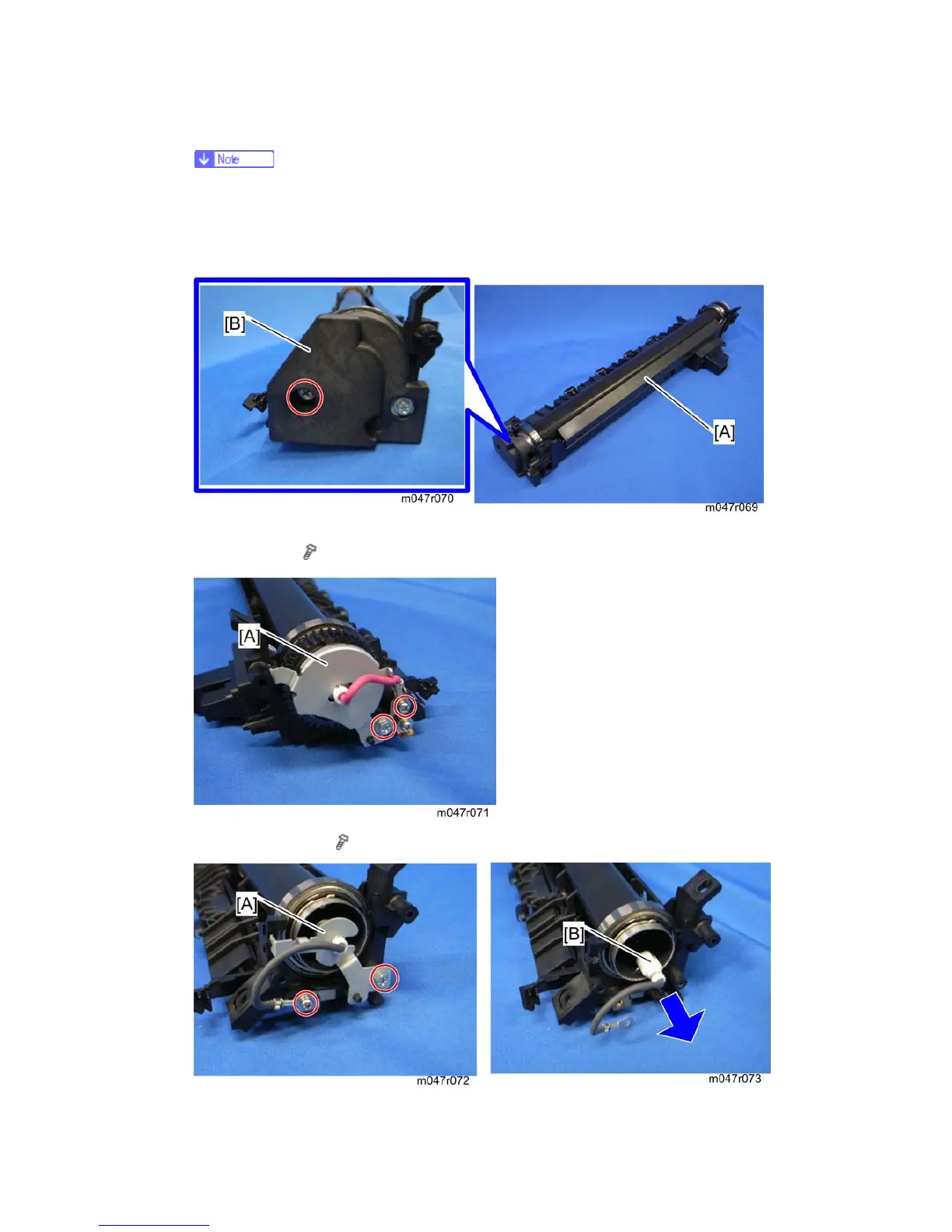

5. Upper guide plate [A] (hooks)
6. Right cover [B] ( x 1)
7. Left lamp holder [A] (
x 2)
