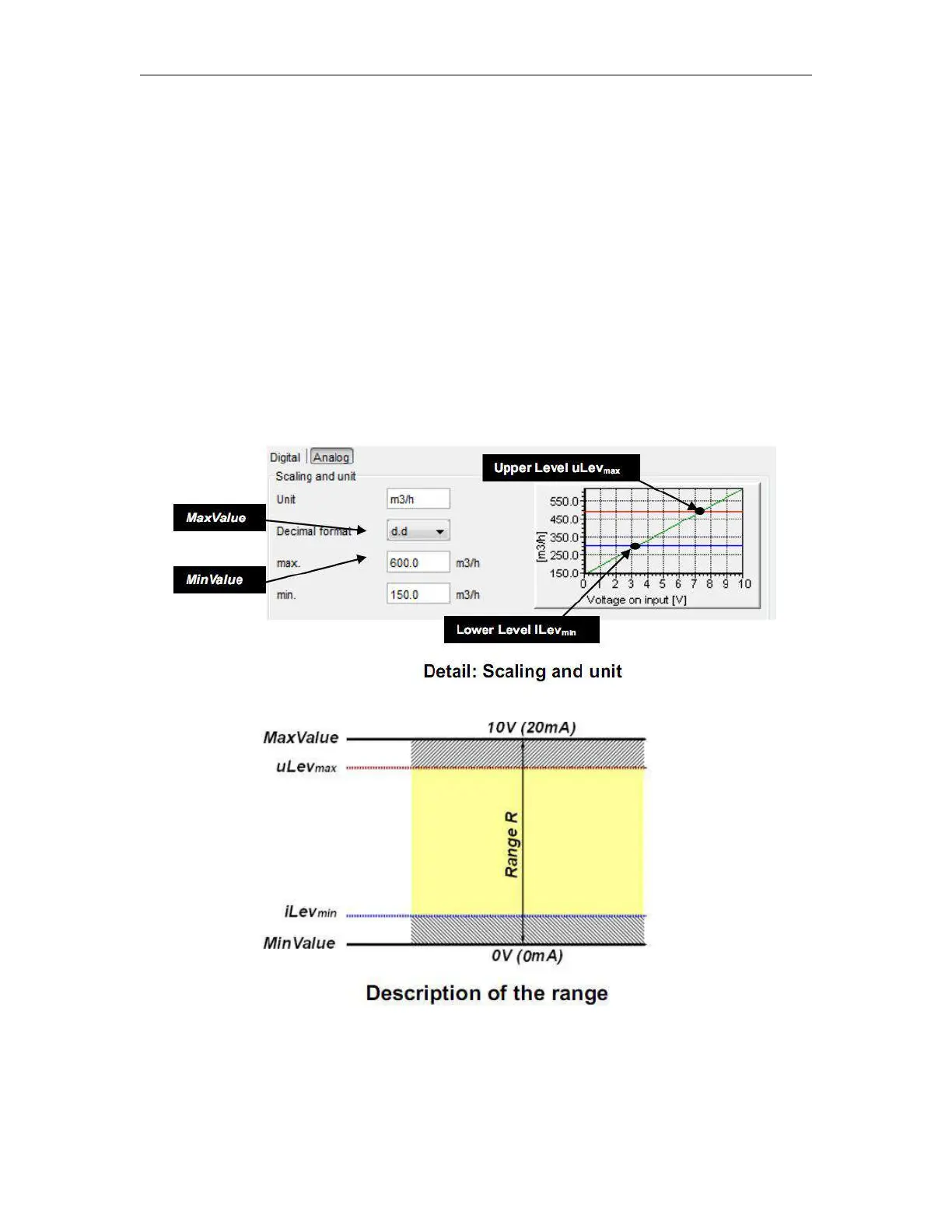

(20 mA), a minimal and a maximum value of the selected unit is assigned. With this two values, a linear
function is interpolated (straight line between 2 points) and displayed in the configuration window. The linear
function is adapted automatically in
accordance to the set values. The values displayed on the PC screen or transmitted by SMS can be display in
different
resolutions:
d integer value, i.e. 5200
d.d one digit after decimal point, i.e. 520.0
d.dd two digits after decimal point, i.e. 52.00
d.ddd tree digits after decimal point, i.e. 5.200
9 characters are available for the description of the units. This unit will be sent with every value message
following the actual value:
Example of a message: The temperature is 15.5 C
The top and the bottom thresholds have to be defined to allow sending of messages.
The value between the max and the min value is the range R. This range has an important function in the
designation of the thresholds.
The maximum Upper Level uLevmax ≤ MaxValue
