B. customize Modbus

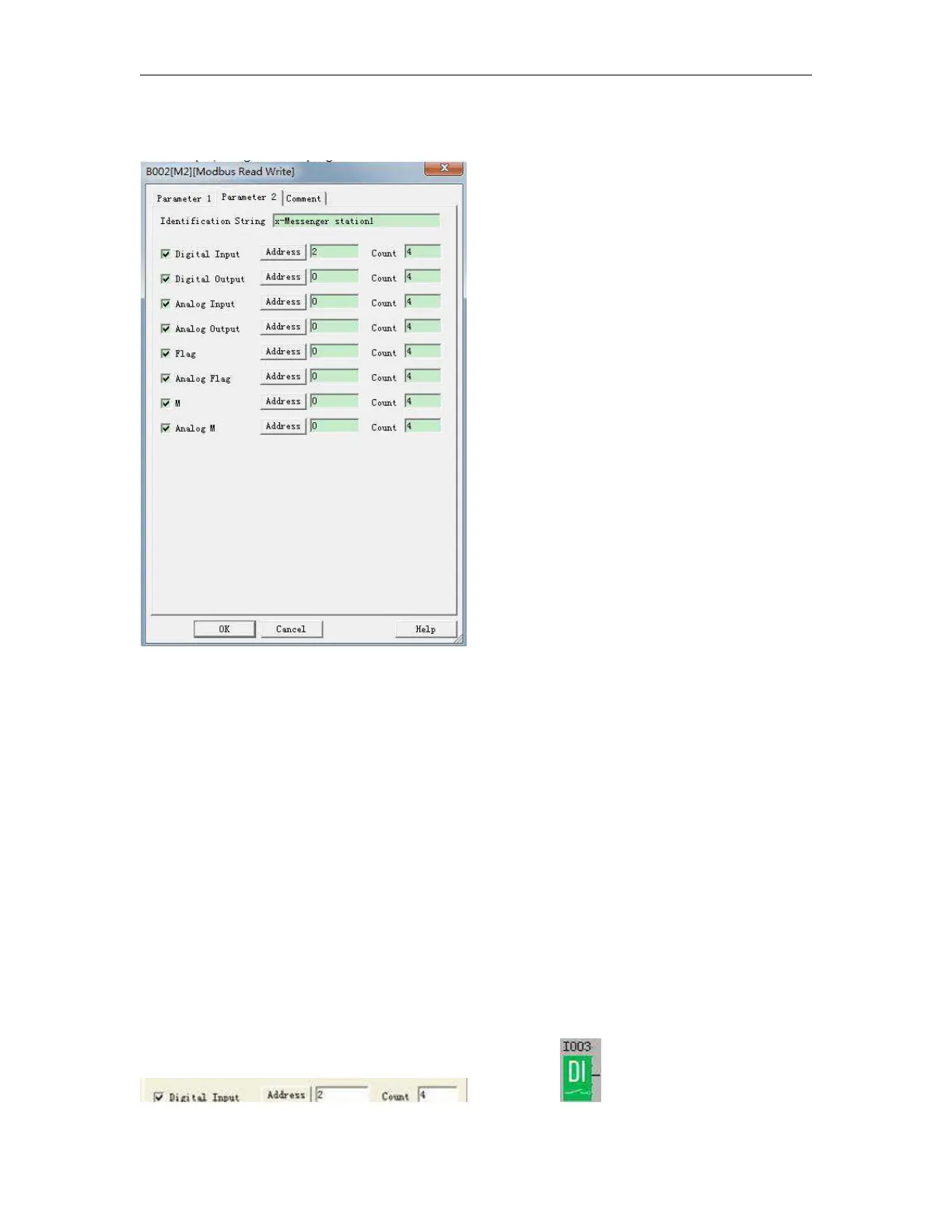

For example,configuration in program like this:
Server software get the data like this:
00 09 00 00 00 4c 01 8b 49 14 78 2d 4d 65 73 73 65 6e 67 65 72 20 73 74 61 74 69 6f 6e 31 01 01 01 02
01 0d 0b 08 00 80 00 88 00 00 00 00 0c 08 00 00 00 00 00 80 00 88 16 01 02 17 08 01 c2 00 00 02 26 00
00 07 01 04 0d 08 00 00 00 00 00 00 01 c2
Description:
00 09 00 00 00 4c : MODBUS TCP data prefixed by six bytes
01 ：x-Messenger address(the default is 01)
8b : Upload code(fixed, if GPRS Data upload used)
49 :length field =number of bytes following
14 :length field = number of bytes of Identification string
78 2d 4d 65 73 73 65 6e 67 65 72 20 73 74 61 74 69 6f 6e 31 : x-Messenger station1(Identification String)
01 01 01
