01 : type code (01 means the digital inputs)
01 : length field = number of bytes of the digital inputs
01 : status of the digital inputs(I3=1,I4=0,I5=0,I6=0)
02 01 0d

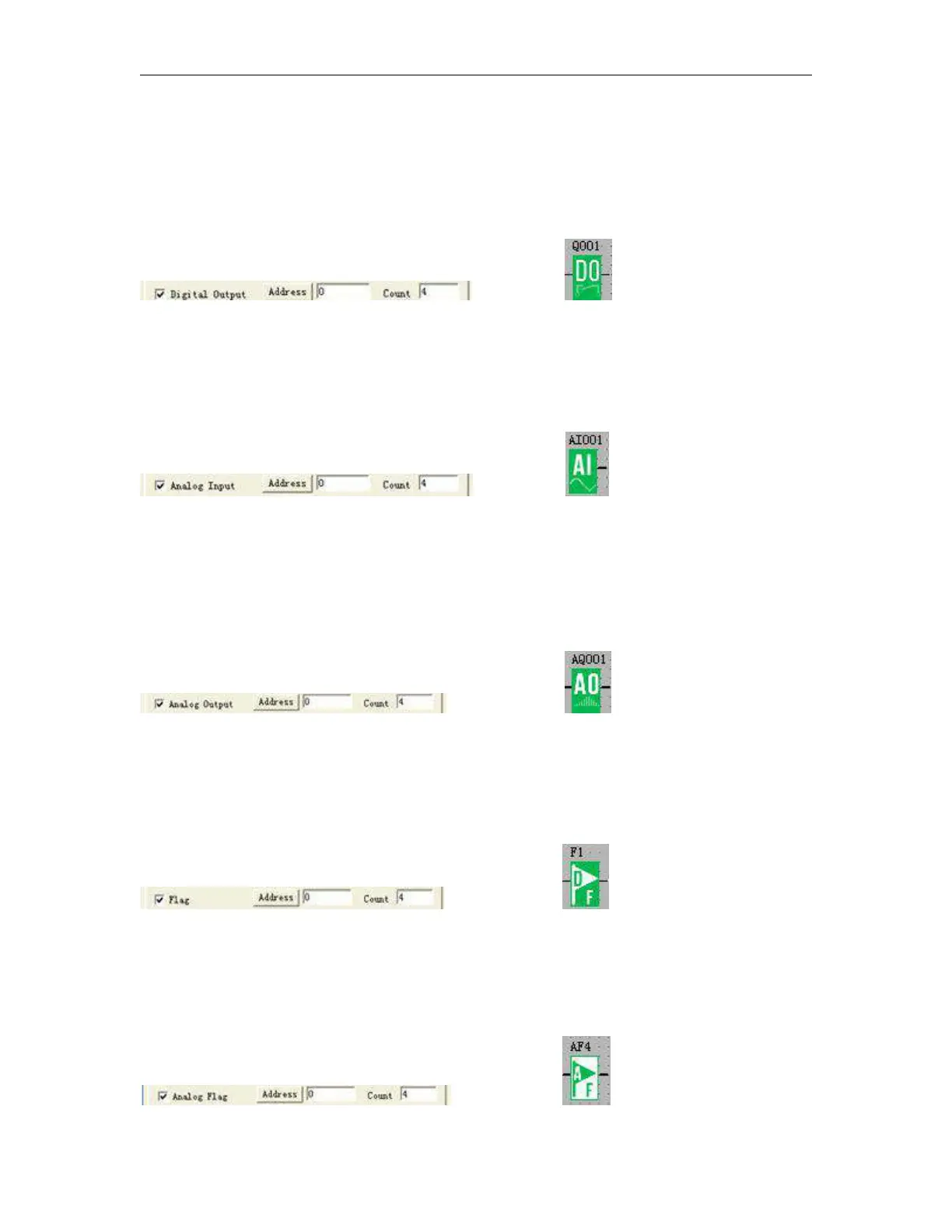

02 : type code (02 means the digital outputs)
01 : length field = number of bytes of the digital outputs
0d : status of the digital outputs (Q1=1,Q2=0,Q3=1,Q4=1)
0b 08 00 80 00 88 00 00 00 00
0b : type code (0b means the Analog Input)
08 :length field = number of bytes
of the analog inputs
00 80 00 88 00 00 00 00 : analog inputs value (AI1= 00 80 , AI2 = 00 88, AI3= 00 00,AI4= 00 00)
0c 08 00 00 00 00 00 80 00 88
0c : type code (0c means the Analog output)
08 : length field = number of bytes of the analog outputs
00 00 00 00 00 80 00 88 : analog outputs value (AQ1= 00 00 , AQ2 = 00 00, AQ11= 00 80,AQ12= 00 88)
16 01 02
16 : type code (16 means the digital flag)
01 : length field = number of bytes of the digital flag
02 : status of the digital flag (F1=0,F2=1,F3=0,F4=0)
17 08 01 c2 00 00 02 26 00 00
