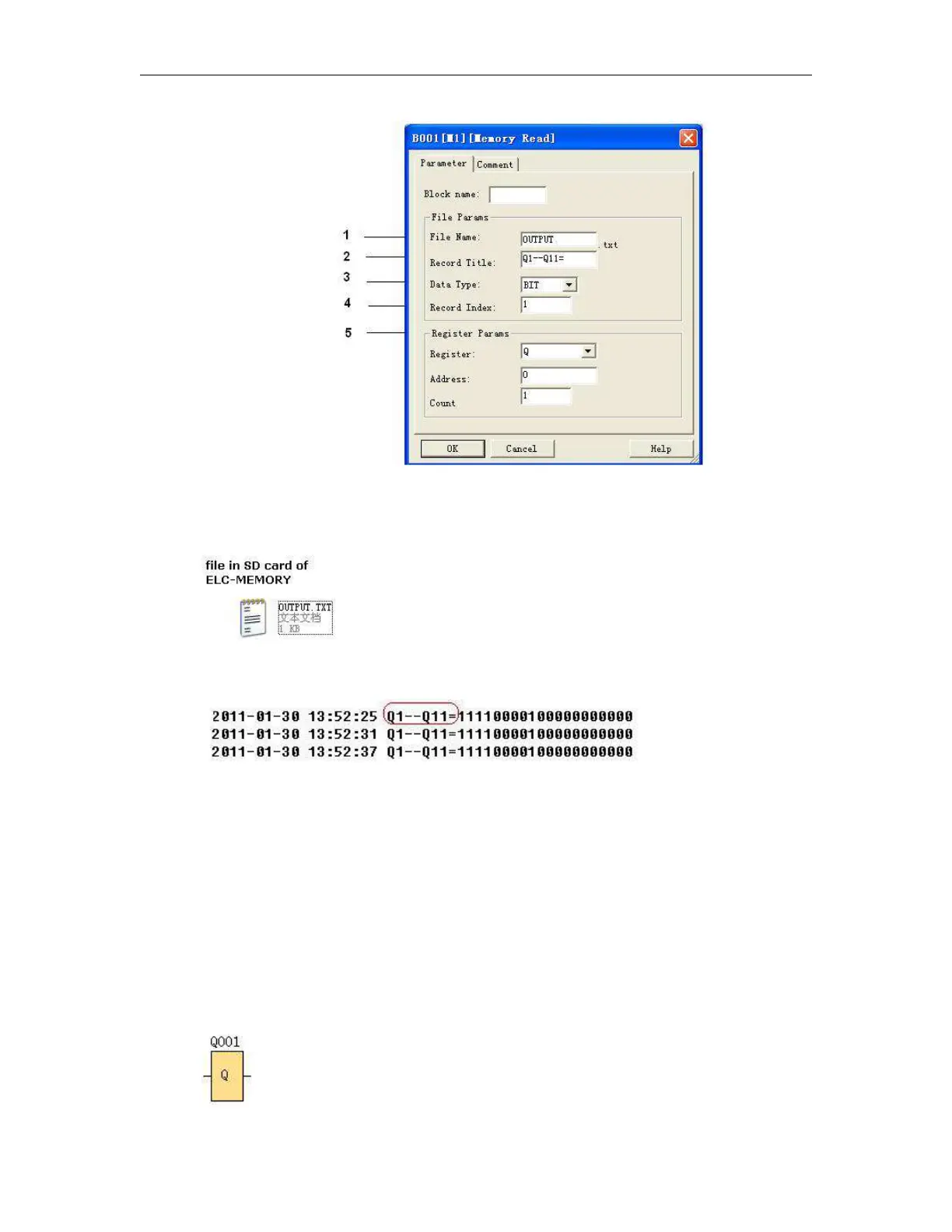

1. File name
The name of the file which you want to access is stored in the mini-SD card of the EXM-MEMORY module.
2. Record Title
Below is an example in the “OUTPUT.TXT”
3. Data Type:
Two options available: Option A. BIT (0 or 1, this is used to be set the status of Q or F )
Option B . WORD (this is used to be set the value of AQ or AF)
4. Record Index:
Here is used to set which line the CPU will access via this Memory Read block
Here is to set the parameters of register, all these registers have “write” property.
BIT data can be used to set the register “Q” and “F”.
Q: digital outputs
