Analog filter : AQ
Average value : AQ
You can select the required function by the block number.

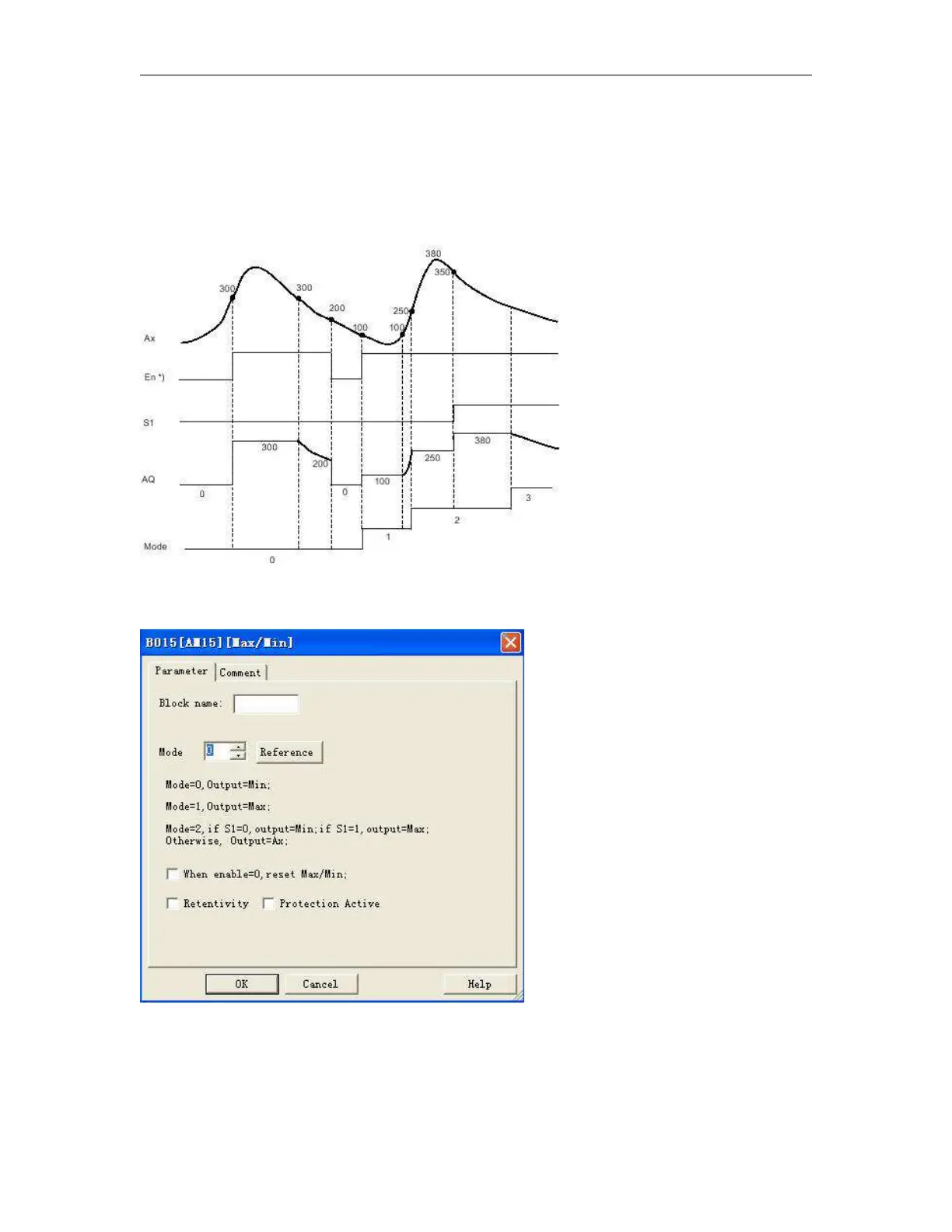

Timing diagram
*) If you select the check box "when En = 0, reset Max/Min"
Description of the function
If you select the check box "when En = 0, reset Max/Min":
En = 0: The function sets the AQ value to 0.
En = 1: The function outputs a value at AQ, depending on the settings of Mode and S1.
