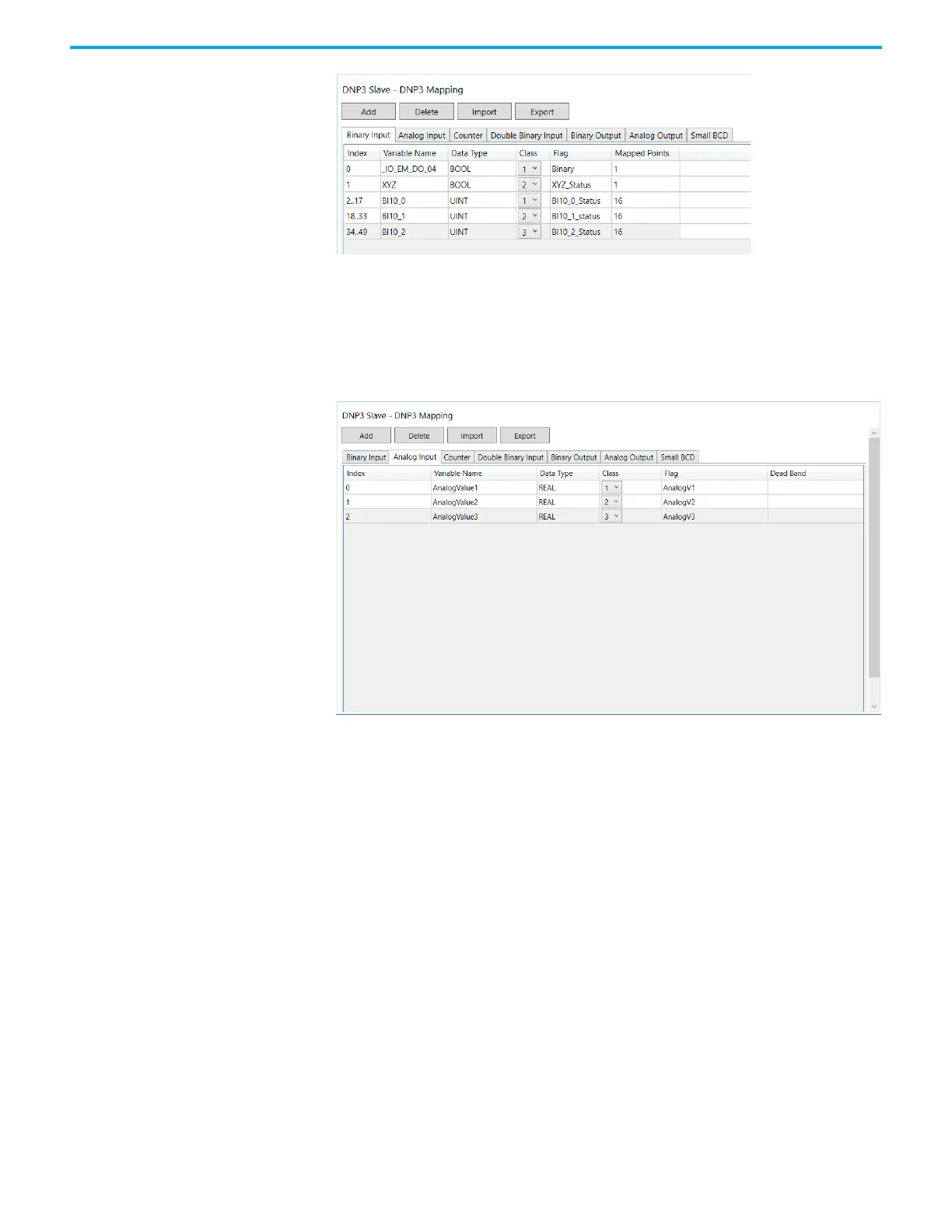

The setting in the image above shows that the different class events can be
triggered when the BOOL variable is triggered. When using the UINT variable,
any of the bits in the UINT will trigger the respective class event.
In the same manner, create this 16-bit Analog Input Object in the Analog Input
tab and define Index 0 as Class 1, Index 1 as Class 2, and Index 2 as Class 3.
DNP3 10K Event Logging
Up to 10,000 events can be logged. To configure the number of events, change
the Unsolicited Responses for the Class 1/2/3 to Enabled and define 10,000 into
the Number of Events field. Download the project into the controller for the
setting to take effect.
