42 Rockwell Automation Publication 2080-UM002M-EN-E - April 2022
Chapter 3 Install Your Controller

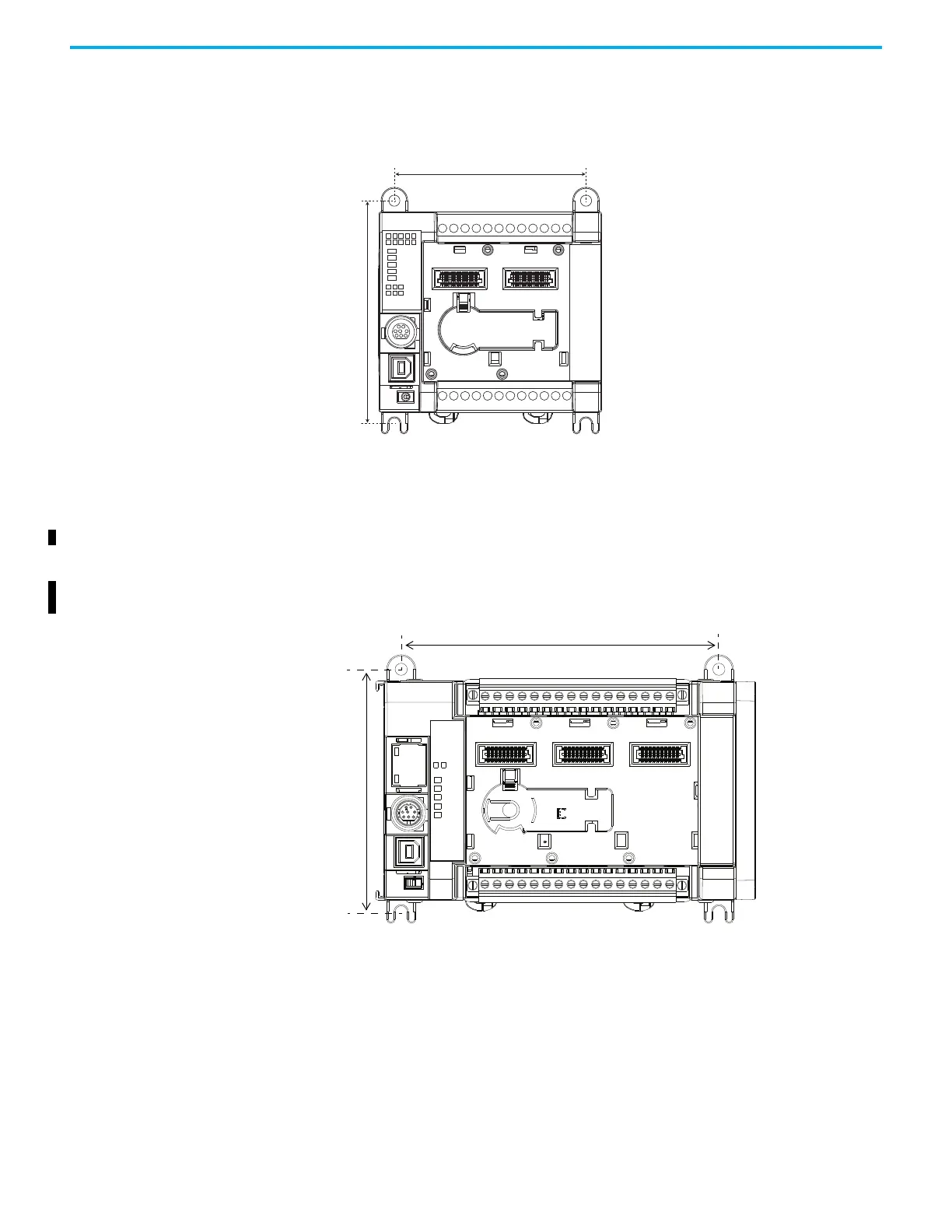

Panel Mounting Dimensions
Micro830 10-Point and 16-Point Controllers
2080-LC30-10QWB, 2080-LC30-10QVB, 2080-LC30-16AWB, 2080-LC30-16QWB, 2080-LC30-16QVB
Micro830 24-Point Controllers
2080-LC30-24QWB, 2080-LC30-24QVB, 2080-LC30-24QBB
Micro850 24-point Controllers
2080-LC50-24AWB, 2080-LC50-24QBB, 2080-LC50-24QVB, 2080-LC50-24QWB,
2080-L50E-24AWB, 2080-L50E-24QBB, 2080-L50E-24QVB, 2080-L50E-24QWB
Micro870 24-point Controllers
2080-LC70-24AWB, 2080-LC70-24QWB, 2080-LC70-24QWBK, 2080-LC70-24QBB, 2080-LC70-24QBBK,
2080-L70E-24AWB, 2080-L70E-24QWB, 2080-L70E-24QWBK, 2080-L70E-24QWBN, 2080-L70E-24QBB,
2080-L70E-24QBBK, 2080-L70E-24QBBN
86 mm (3.39 in.)
100 mm (3.94 in.)
131 mm (5.16 in.)
100 mm (3.94 in.)
