Chapter 5 Communication Connections
Configure Serial Port You can configure the serial port driver as CIP Serial, Modbus RTU, ASCII, or
Shutdown through the Device Configuration tree in the Connected
Components Workbench software.
Configure CIP Serial Driver

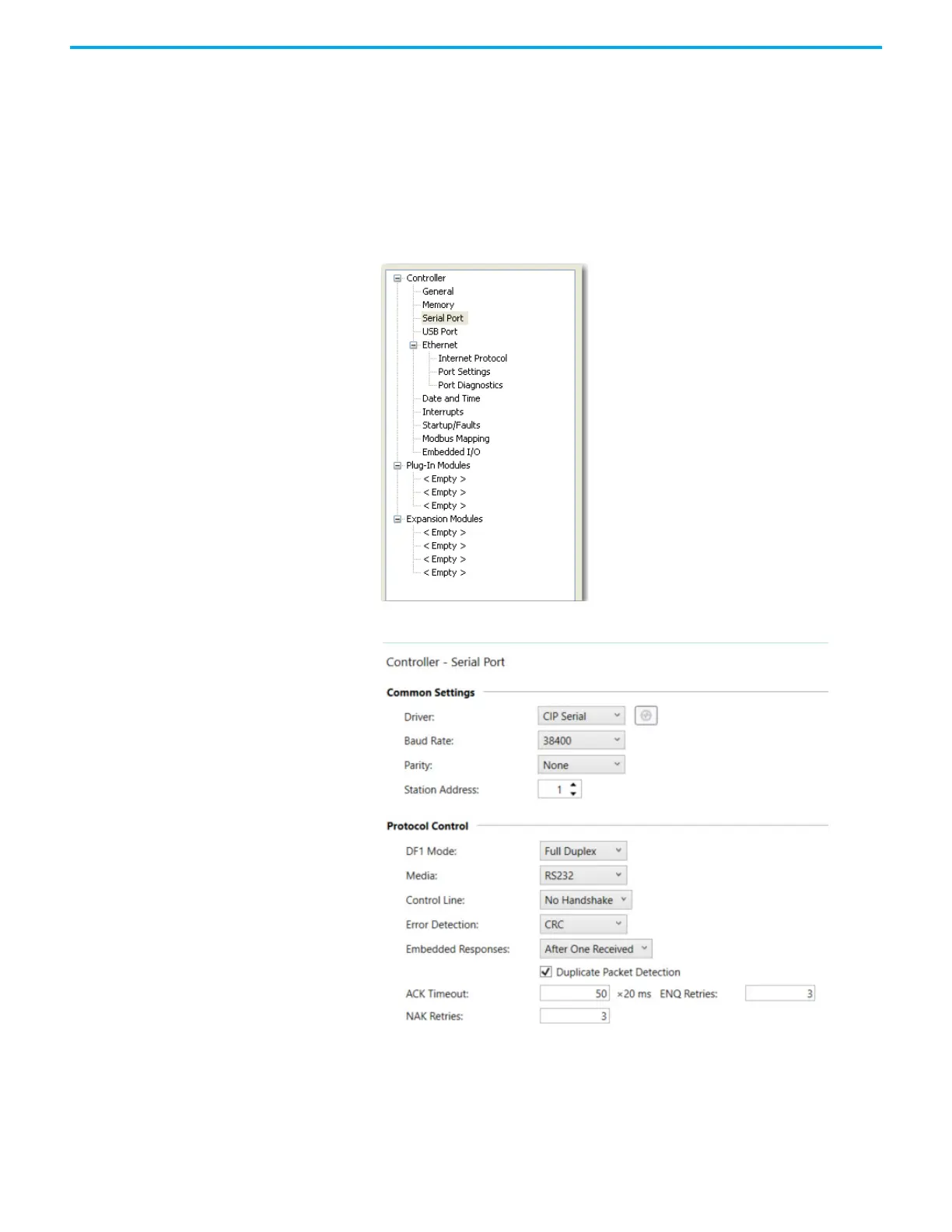

1. Open your Connected Components Workbench project. On the device
configuration tree, go to the Controller properties. Click Serial Port.
2. Select CIP Serial from the Driver field.
3. Specify a baud rate. Select a communication rate that all devices in your
system support. Configure all devices in the system for the same
communication rate. Default baud rate is set at 38,400 bps.
4. In most cases, parity and station address should be left at default
settings.
