76 Rockwell Automation Publication 2080-UM002M-EN-E - April 2022

Chapter 6 Micro870 Controller Distributed Network Protocol

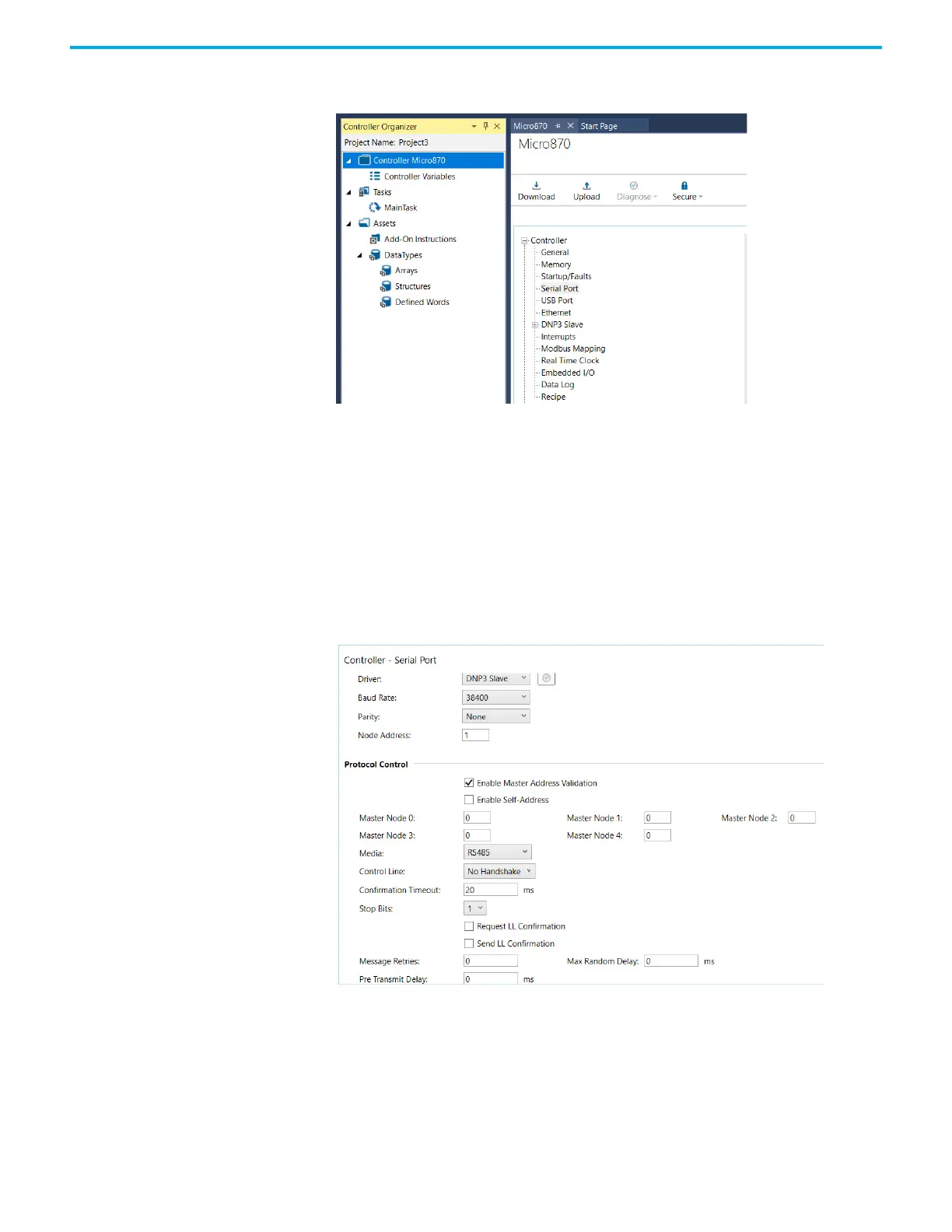

In Connected Components Workbench software, open the Micro870 controller

project tree.

There are three configurations related to DNP3 protocol in Connected

Components Workbench software:

• Serial and/or Ethernet port configuration

• DNP3 Slave Application Layer configuration.

Serial Port Link Layer Configuration

Link Layer related configuration can be done in the Serial Port configuration

page.
