152 Rockwell Automation Publication 2080-UM002M-EN-E - April 2022
Chapter 8 Motion Control

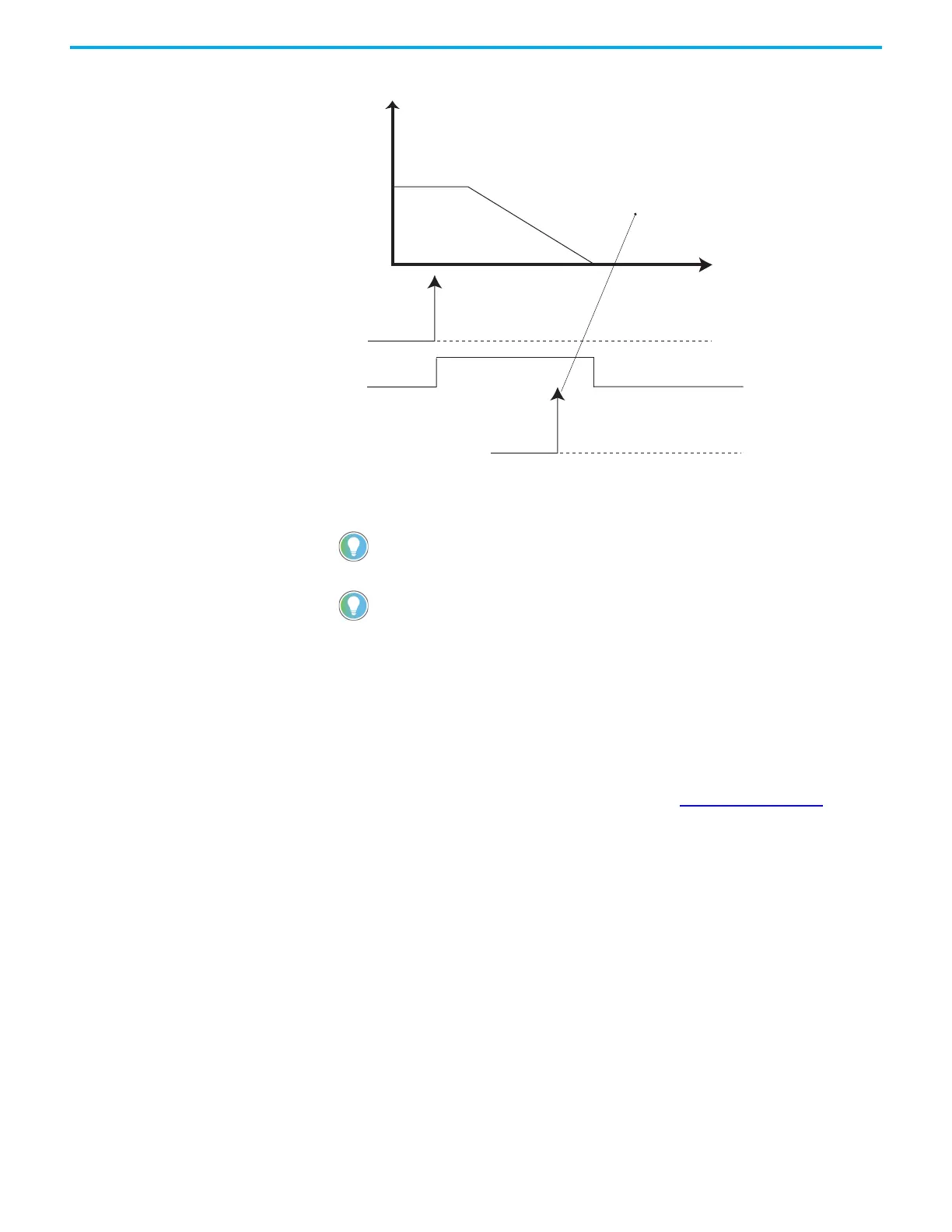

Example: Error Stop using MC_Stop cannot be Aborted
MC_Halt and MC_Stop are both used to bring an axis to a StandStill but
MC_Stop is used when an abnormal situation occurs.
Motion Axis and Parameters The following state diagram illustrates the behavior of the axis at a high level
when multiple motion control function blocks are activated. The basic rule is
that motion commands are always taken sequentially, even if the controller
has the capability of real parallel processing. These commands act on the axis’
state diagram.
The axis is always in one of the defined states see Figure 11 on page 153
. Any
motion command is a transition that changes the state of the axis and, as a
consequence, modifies the way the current motion is computed.
MC_Stop can abort other motion function blocks but can never be
aborted itself.
MC_Stop goes to the Stopping state and normal operation cannot
resume.
Velocity
Time
MC_Stop Execute
Busy
Motion function block Execute
This command is ignored.
