Rockwell Automation Publication 2080-UM002M-EN-E - April 2022 291
Appendix C User Interrupts
the currently executing interrupt routine continues to completion. Then the
lower priority interrupt runs before returning to normal processing.

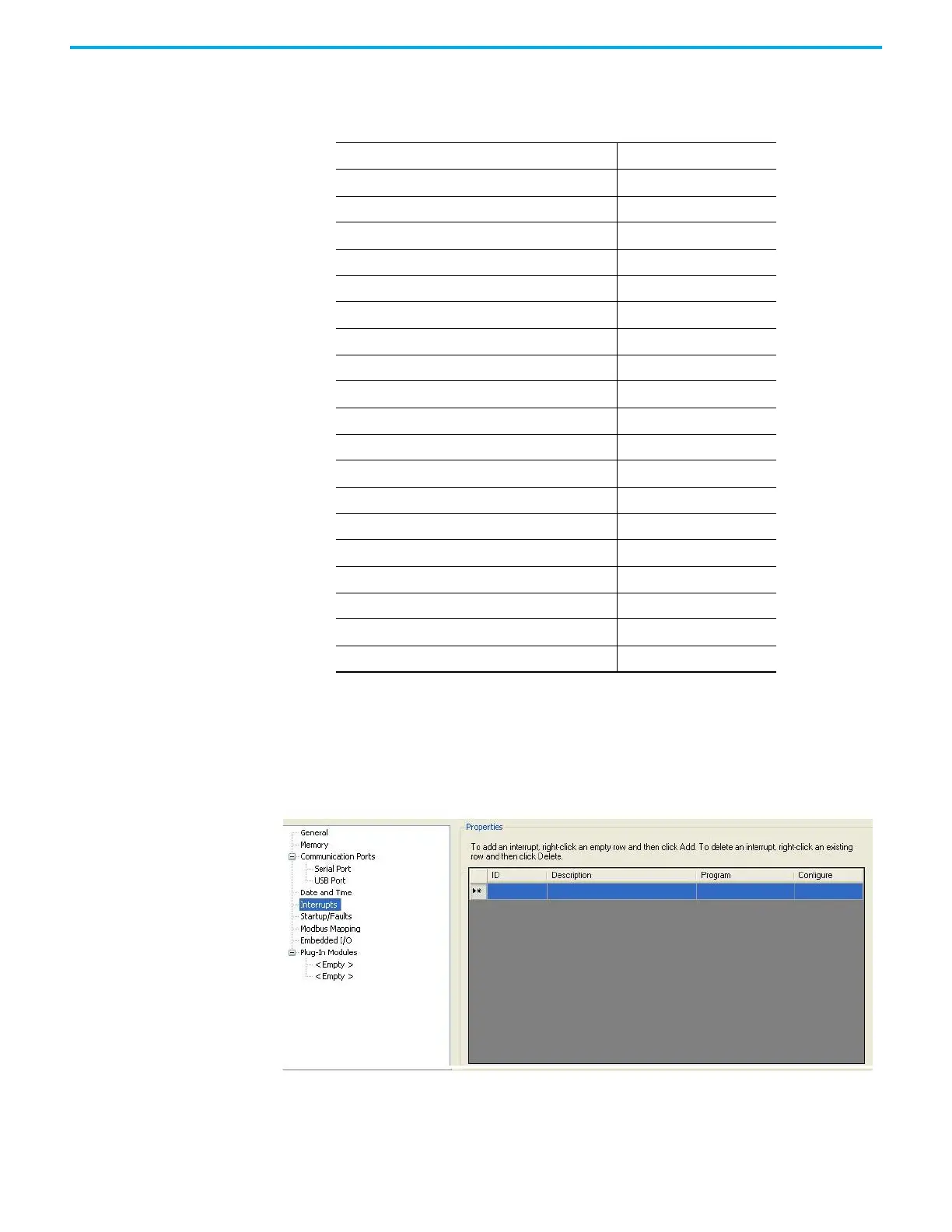

User Interrupt Configuration
User interrupts can be configured and set as AutoStart from the Interrupts
window.
Table 58 - Priorities From Highest to Lowest
User Fault Routine highest priority
Event Interrupt0
Event Interrupt1
Event Interrupt2
Event Interrupt3
High-Speed Counter Interrupt0
High-Speed Counter Interrupt1
High-Speed Counter Interrupt2
High-Speed Counter Interrupt3
High-Speed Counter Interrupt4
High-Speed Counter Interrupt5
Event Interrupt4
Event Interrupt5
Event Interrupt6
Event Interrupt7
Selectable Timed Interrupt0
Selectable Timed Interrupt1
Selectable Timed Interrupt2
Selectable Timed Interrupt3
Plug-In Module Interrupt0, 1, 2, 3, 4 lowest priority
