Rockwell Automation Publication 2080-UM002M-EN-E - April 2022 71
Chapter 5 Communication Connections

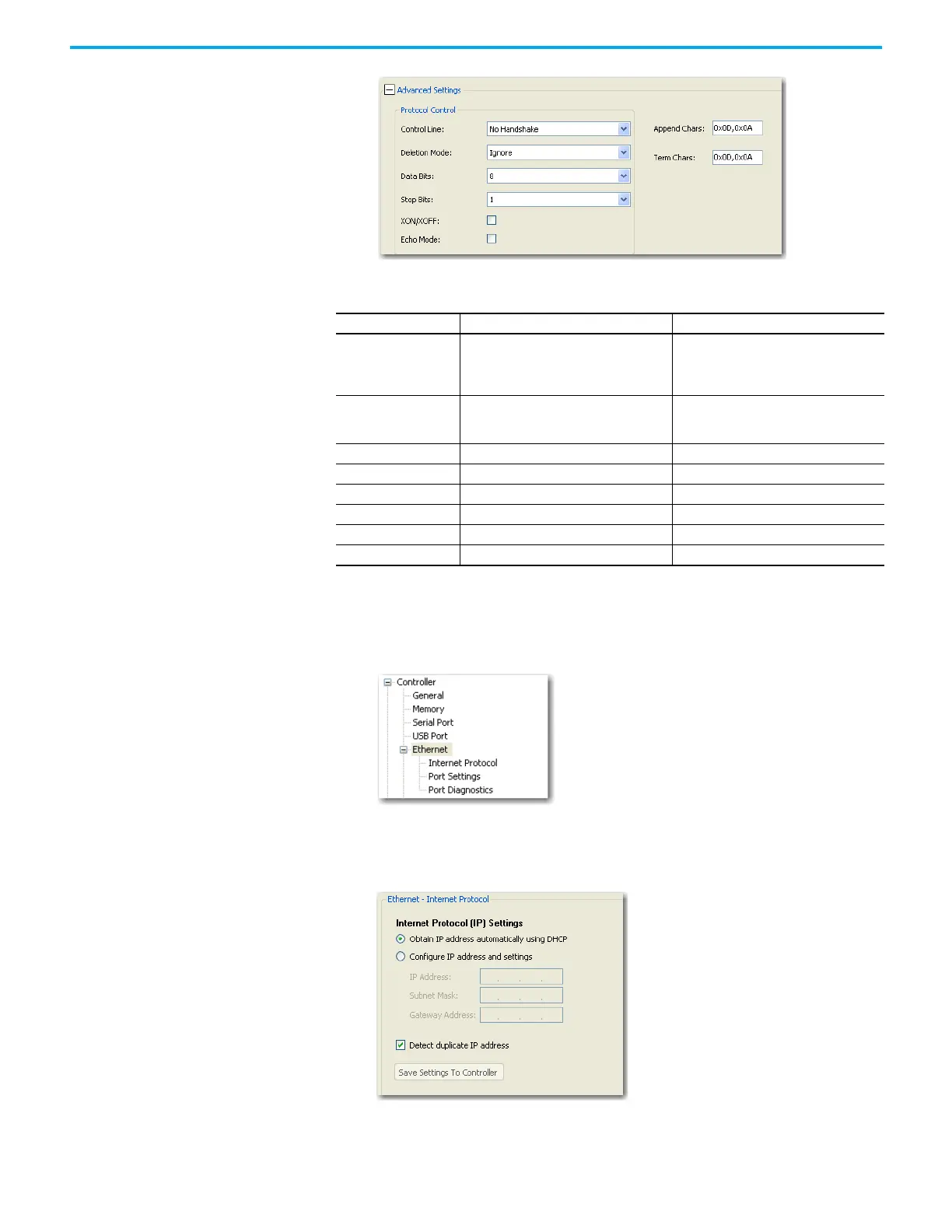

Configure Ethernet Settings 1. Open your Connected Components Workbench project (for example,
Micro850). On the device configuration tree, go to Controller properties.
Click Ethernet.
2. Under Ethernet, click Internet Protocol.
Configure Internet Protocol (IP) settings. Specify whether to obtain the
IP address automatically using DHCP or manually configure IP address,
subnet mask, and gateway address.
ASCII Advanced Parameters
Parameters Options Default
Control Line
Full Duplex
Half-duplex with continuous carrier
Half-duplex without continuous carrier
No Handshake
No Handshake
Deletion Mode
CRT
Ignore
Printer
Ignore
Data Bits 7, 8 8
Stop Bits 1, 2 1
XON/XOFF Enabled or Disabled Disabled
Echo Mode Enabled or Disabled Disabled
Append Chars 0x0D,0x0A or user-specified value 0x0D,0x0A
Term Chars 0x0D,0x0A or user-specified value 0x0D,0x0A
