Rockwell Automation Publication 2080-UM002M-EN-E - April 2022 107
Chapter 6 Micro870 Controller Distributed Network Protocol

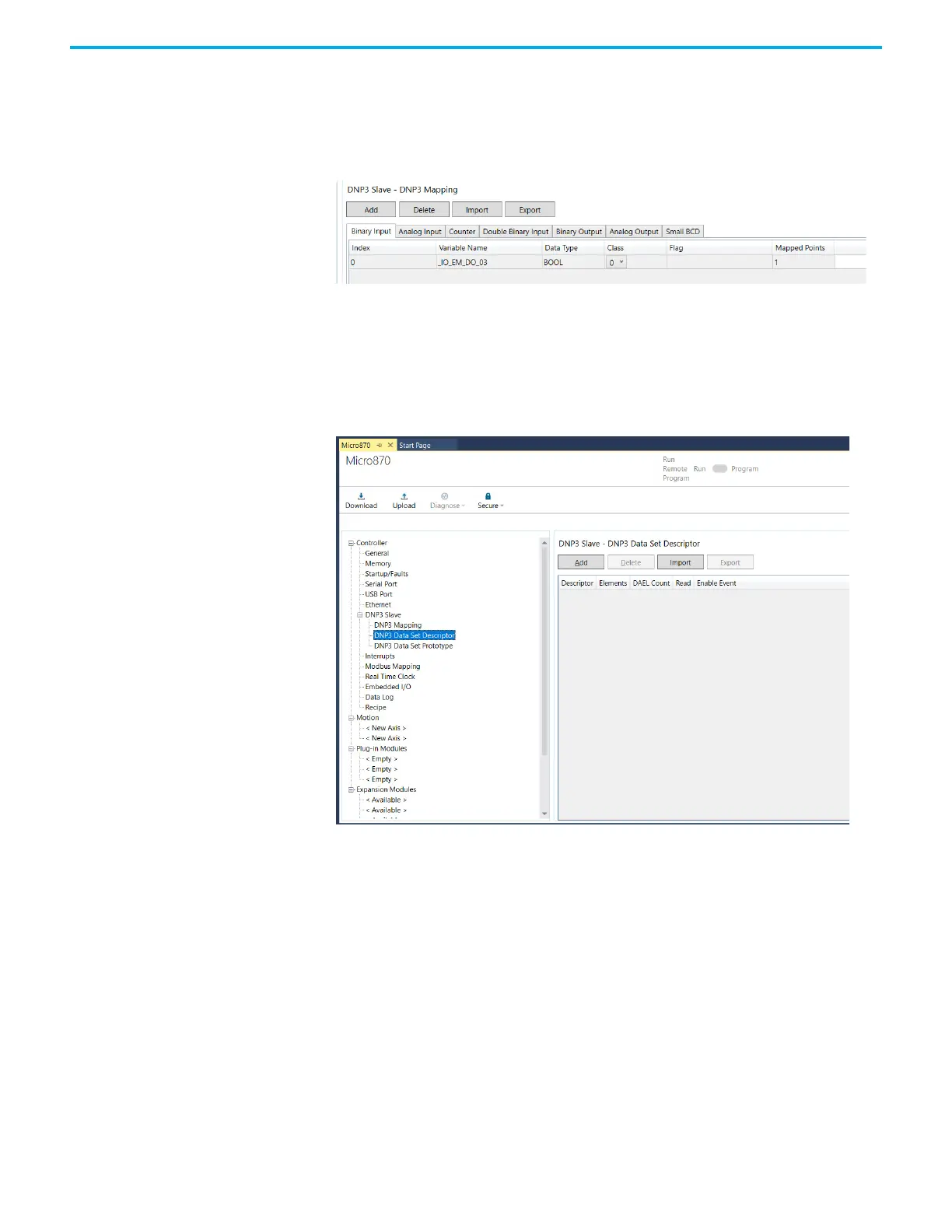

DNP3 Configuration
You can configure parameters such as Class level and Object Flag bit
information for each element. This information is defined during object
creation in the data mapping window in DNP3 mapping.
DNP3 Data Set Object
To create a Data Set Object from the DNP3 Subsystem in the controller,
configure Data Set Prototypes/Descriptors Object in the DNP3 Data-set
Descriptor/Prototype under DNP3 Slave.
Each Data Set Prototypes Object can have up to 10 elements of Data Set
Prototypes, and each Data Set Descriptors Object can have up to 10 elements of
Data-set Descriptors.
As an example, with Data Set Prototypes entry, you can create any number of
Data Set Prototype Object in the DNP3 Data Set Prototype configuration
screen, up to a maximum of 10 entries.
