108 Rockwell Automation Publication 2080-UM002M-EN-E - April 2022
Chapter 6 Micro870 Controller Distributed Network Protocol

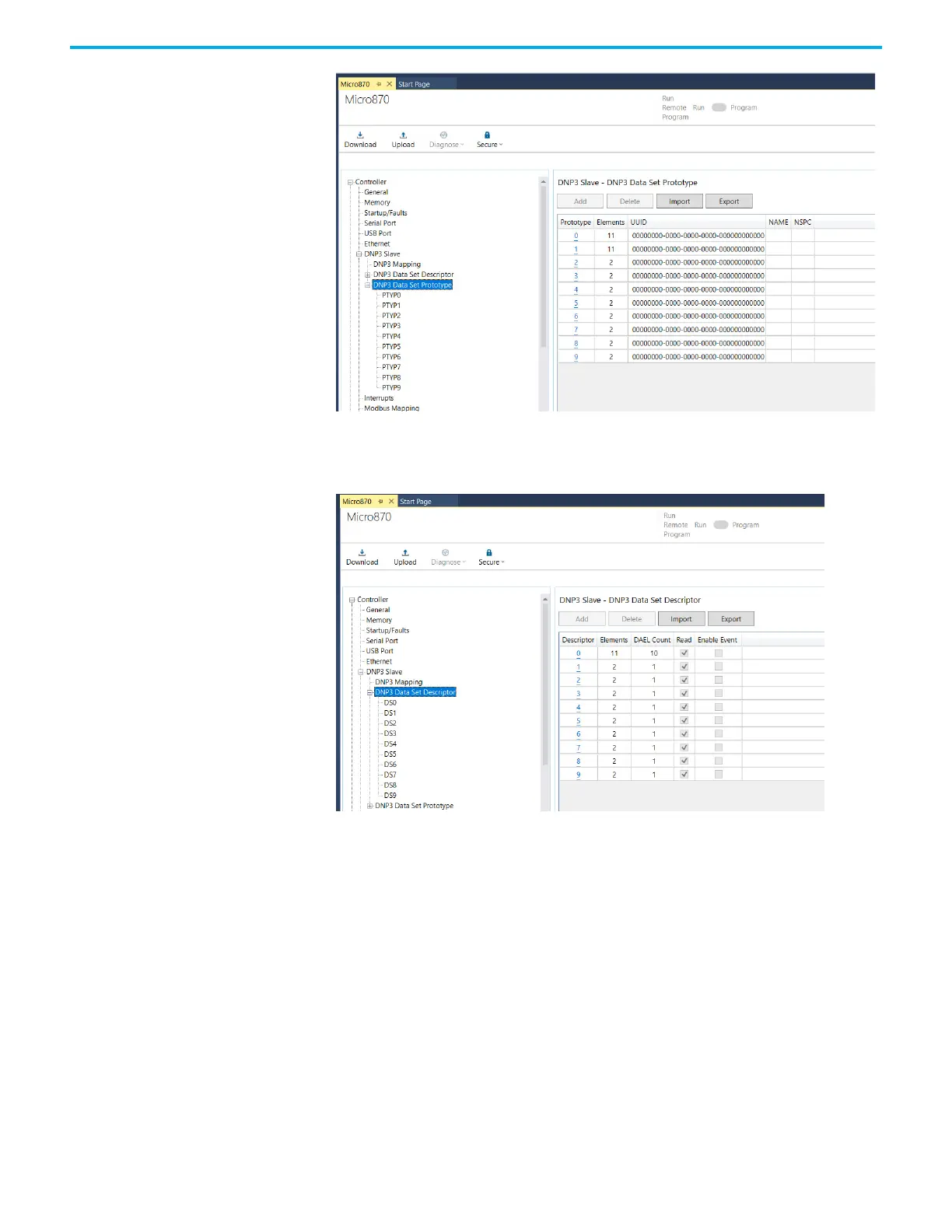

As an example, with Data Set Descriptors entry, you can create any number of
Data Set Descriptor Object in the DNP3 Data Set Descriptor configuration
screen, up to a maximum of 10 entries
Once the Data Set Prototypes and Descriptors are configured in the DNP3
Slave setting page of Connected Components Workbench software version
20.01.00 or later, you can see the DNP3 Descriptor DSX and Prototype PTYPX
under the respective DNP3 Data Set branch, where X is the element numbers
of each Prototype or Descriptor.
