16 Rockwell Automation Publication 2080-UM002M-EN-E - April 2022
Chapter 1 Hardware Overview
Hardware Features Micro830, Micro850, and Micro870 controllers are economical brick style
controllers with embedded inputs and outputs. Depending on the controller
type, it can accommodate from two to five plug-in modules. The Micro850 and
Micro870 controllers have expandable features. The Micro850 controller can
support up to four expansion I/O modules and the Micro870 controller can
support up to eight expansion I/O modules.
The controllers also accommodate any class 2 rated 24V DC output power
supply that meets minimum specifications such as the optional Micro800
power supply.
See Troubleshooting
on page 303 for descriptions of status indicator operation
for troubleshooting purposes.
Micro830 Controllers
IMPORTANT
For information on supported plug-in modules and expansion I/O, see the
following publications:
• Micro800 Expansion I/O Modules User Manual, publication 2080-UM003
• Micro800 Plug-in Modules User Manual, publication 2080-UM004
12 3 4 5 6 7 8
79610111213
14
15
16
17
18
19
20

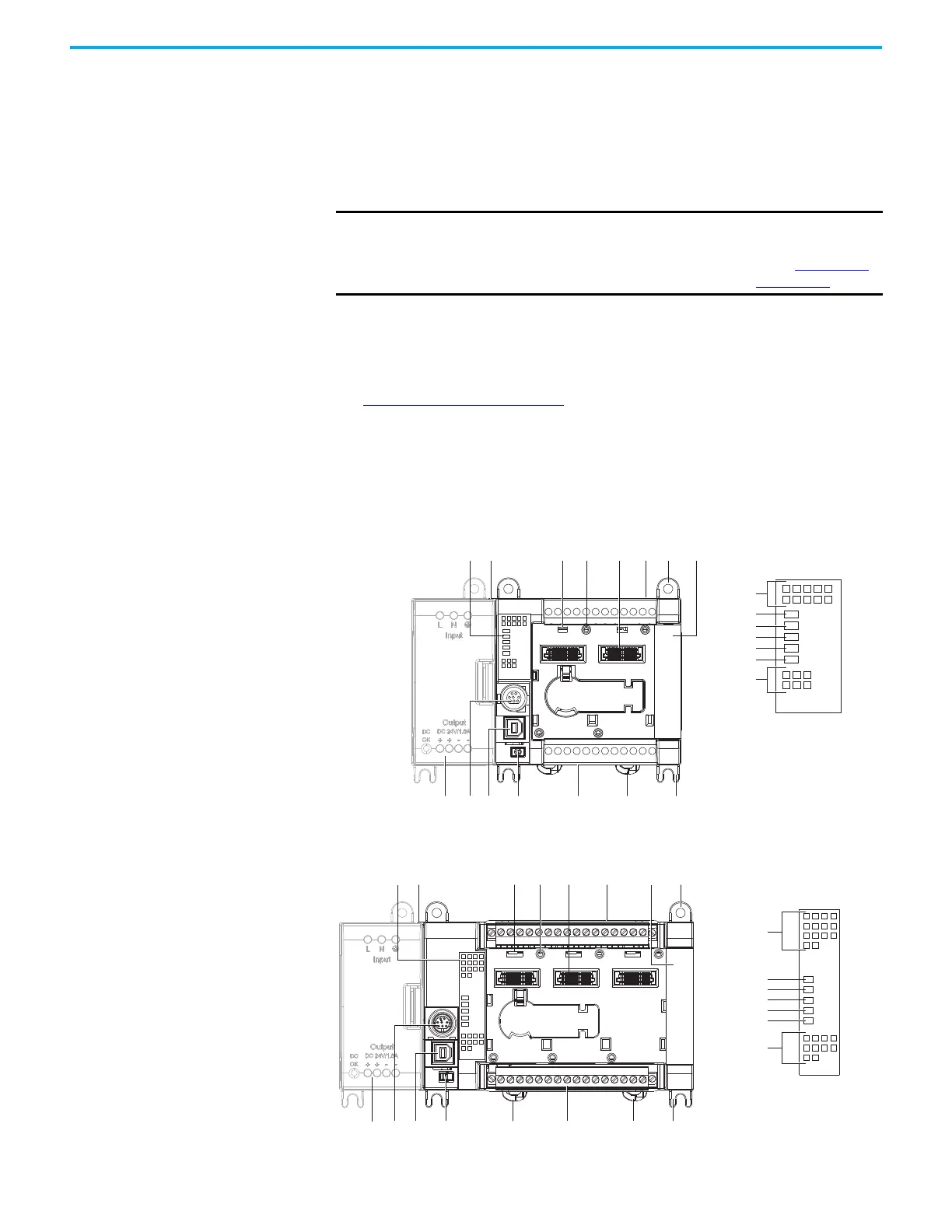

Micro830 10/16-point controllers and status indicators
Controller
Status indicator
14
15
16
17
18
19
20
12 3 4 5 6 7 8
89910111213 6
Micro830 24-point controllers and status indicators
Controller
Status indicator
