Chapter 5 Communication Connections
CIP Communications Pass-
thru
The Micro830, Micro850, and Micro870 controllers support pass-thru on any
communications port that supports Common Industrial Protocol (CIP) for
applications such as program download. It does not support applications that
require dedicated connections such as HMI. Micro830, Micro850, and
Micro870 controllers support a maximum of one hop. A hop is defined to be an
intermediate connection or communications link between two devices – in
Micro800, this is through EtherNet/IP or CIP Serial or CIP USB.

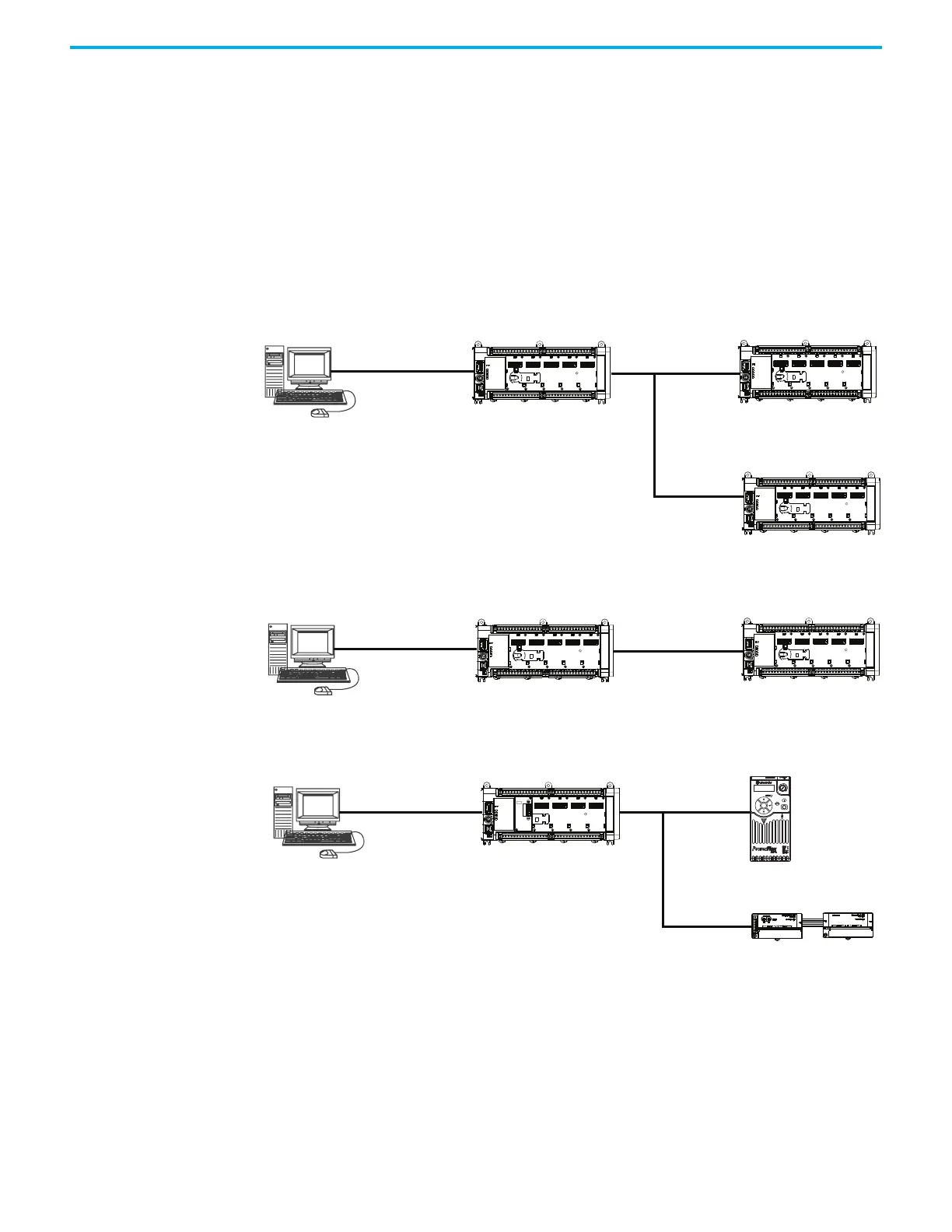

Examples of Supported Architectures
USB to EtherNet/IP
EtherNet/IP to CIP Serial
USB to DeviceNet
Micro850
controller1
USB
Micro850
controller2
Micro850
controller3
EtherNet/IP
The user can download a program from the PC to controller1 over USB. Also, the program
can be downloaded to controller2 and controller3 over USB to EtherNet/IP.
For program download
Micro850
controller1
Micro830
controller2
EtherNet/IP
CIP Serial
Micro850 controller
with
2080-DNET20 plug-in scanner
(Address 0)
USB
DeviceNet
PowerFlex® 525 drive
with
25-COMM-D adapter
(Address 1)
CompactBlockâ„¢ LDX I/O
(Address 2)
