Rockwell Automation Publication 2080-UM002M-EN-E - April 2022 109

Chapter 6 Micro870 Controller Distributed Network Protocol

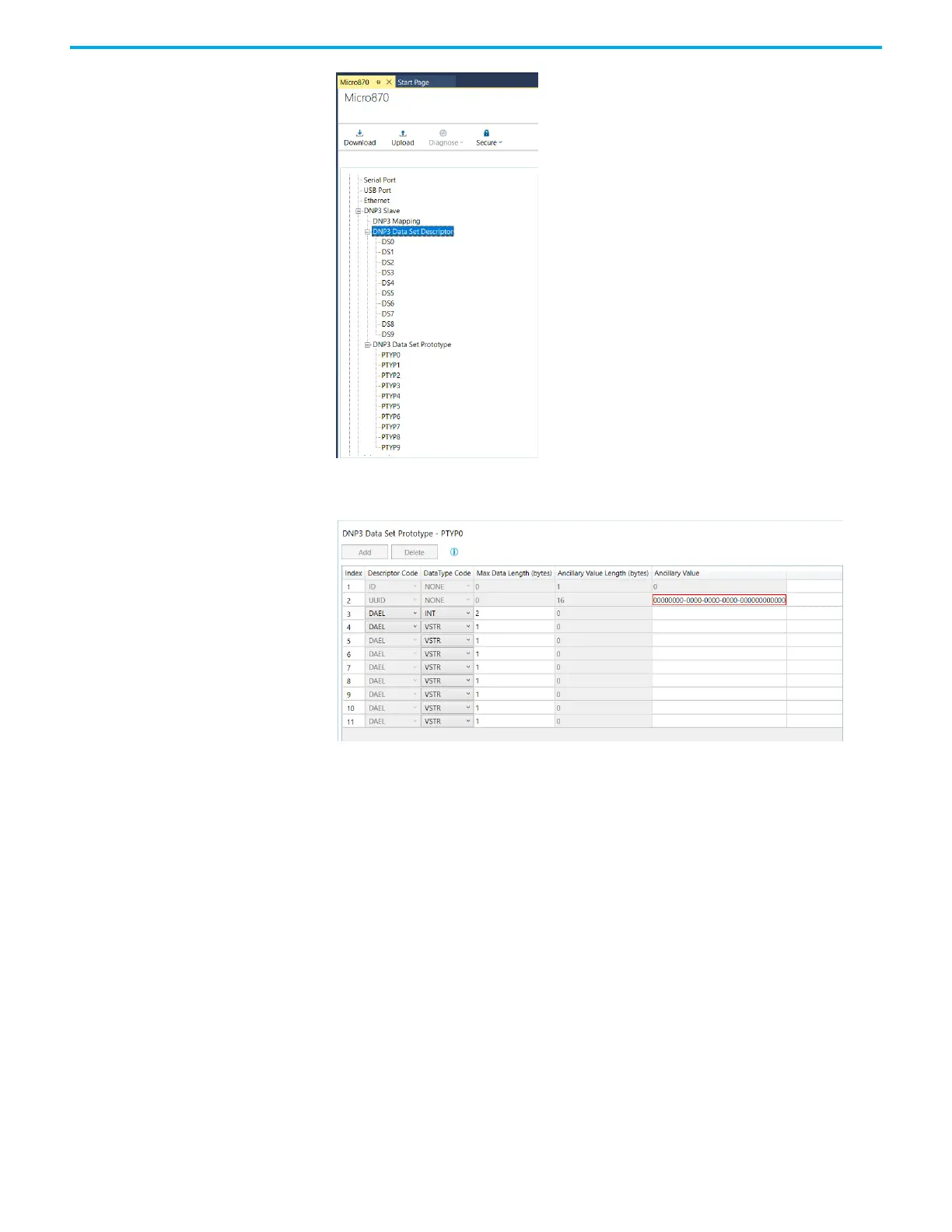

For DNP3 PTYPX, you can configure the controller to construct the Data Set

Prototype objects.

For DNP3 DSX, you can configure the controller to construct the Data Set

Descriptor objects.
